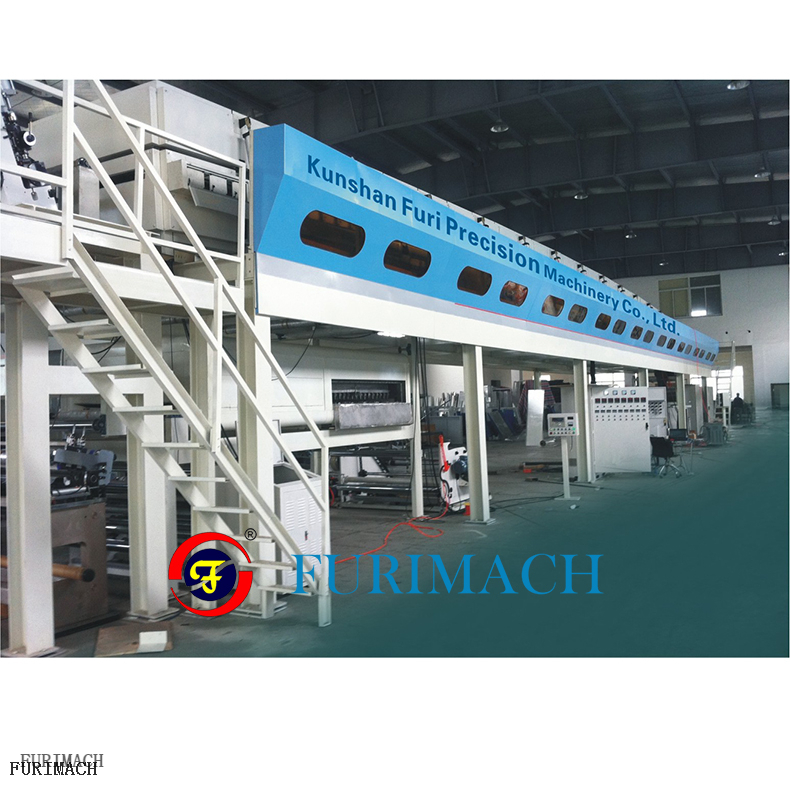

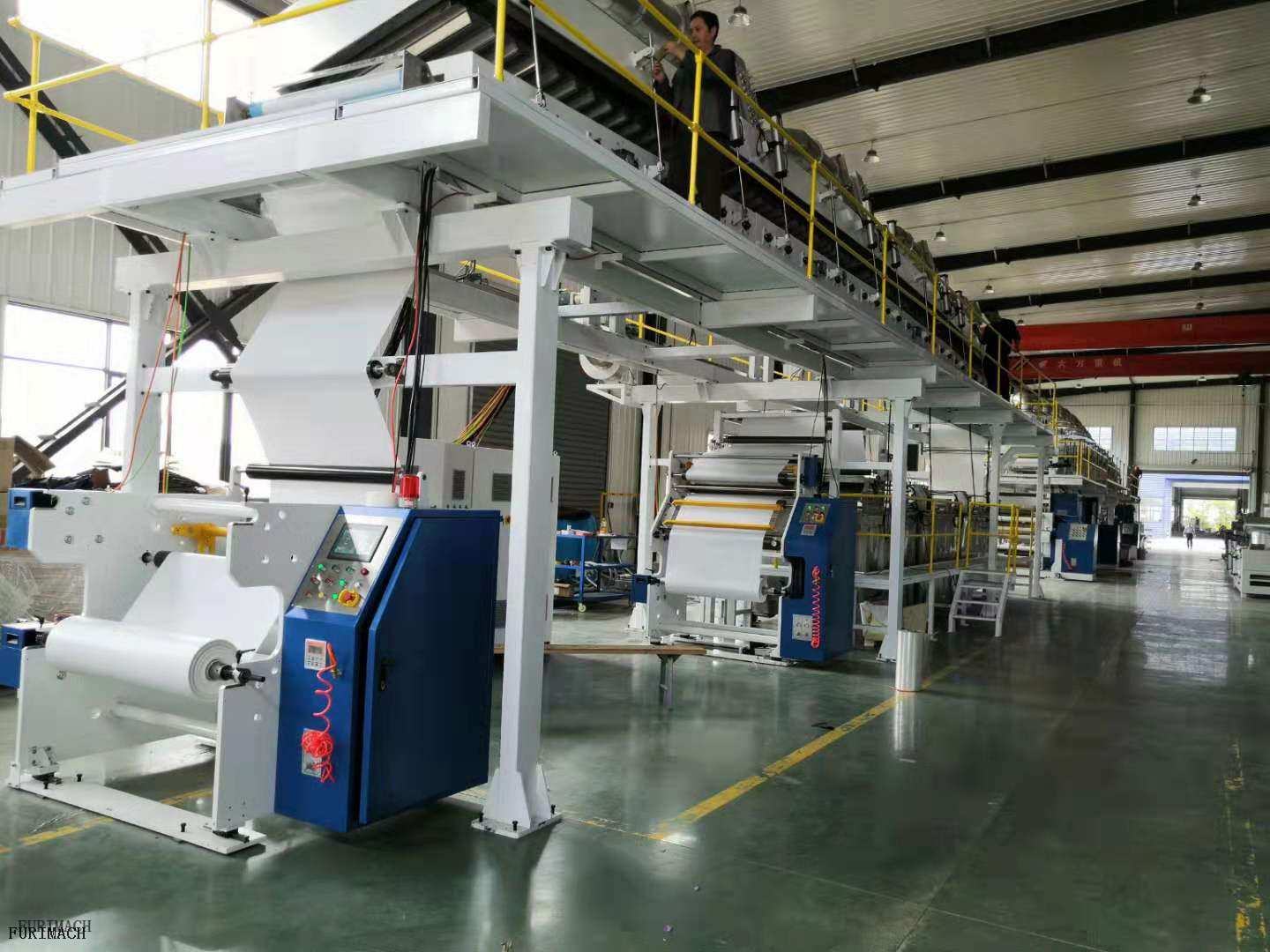

Double Side Tape Coating Machine

Double Side Tape Coating Machine
Application: Suitable for coating foam type double-sided tape, water based coating glue application.
Availability:
Quantity:
sharethis sharing button
  • FRSM-1600

  • FURIMACH

Features:
1. Siemens PLC control system with touch panel operation.
2.
Double-station unwinding. Manual/ automatic splicing.

3. Set auto adjustment of coating thickness via touch panel.
4. Separate tension control in closed loop, with more stable production tension.
5. Arched oven design (conveyor belt/guide roller). Independent and precise temperature control for partitioned area.
6. Side top opening type of oven, easy for operation and cleaning.
7. Web guide control by servo motor, with smooth rewinding.
8. Major rewinding & peel off rewinding are double-station rewinding type.


Technical parameters:

UnitQty
Single-station unwinder1 set
Pulling unit1 set
Comma bar/transfer coating unit1 set
Oven1 set, 4m/section, 7 sections
Cooling rack1 set
Double-station rewinder1 set
Second rewinder1 set
Laminating unwinder1 set
Moisturizing unit1 set
Foam conveyor belt & lamination unit1 set
Machine rack1 set
Transmission system1 set
Electrical control system1 set
Main Technical Parameters
Effective coating width:1600mm
Roller width:1750mm
Max. unwind diameter (climbing type)Φ1000mm
Max. rewind diameter:Φ1200mm
Heating type:Natural gas
Temperature controlMax. 140ºC
Rewind edge tidiness:±3mm
Mechanical speed:5~60m/min
Total electrical power:Around 220KW
