FTBS
FURIMACH
84778000

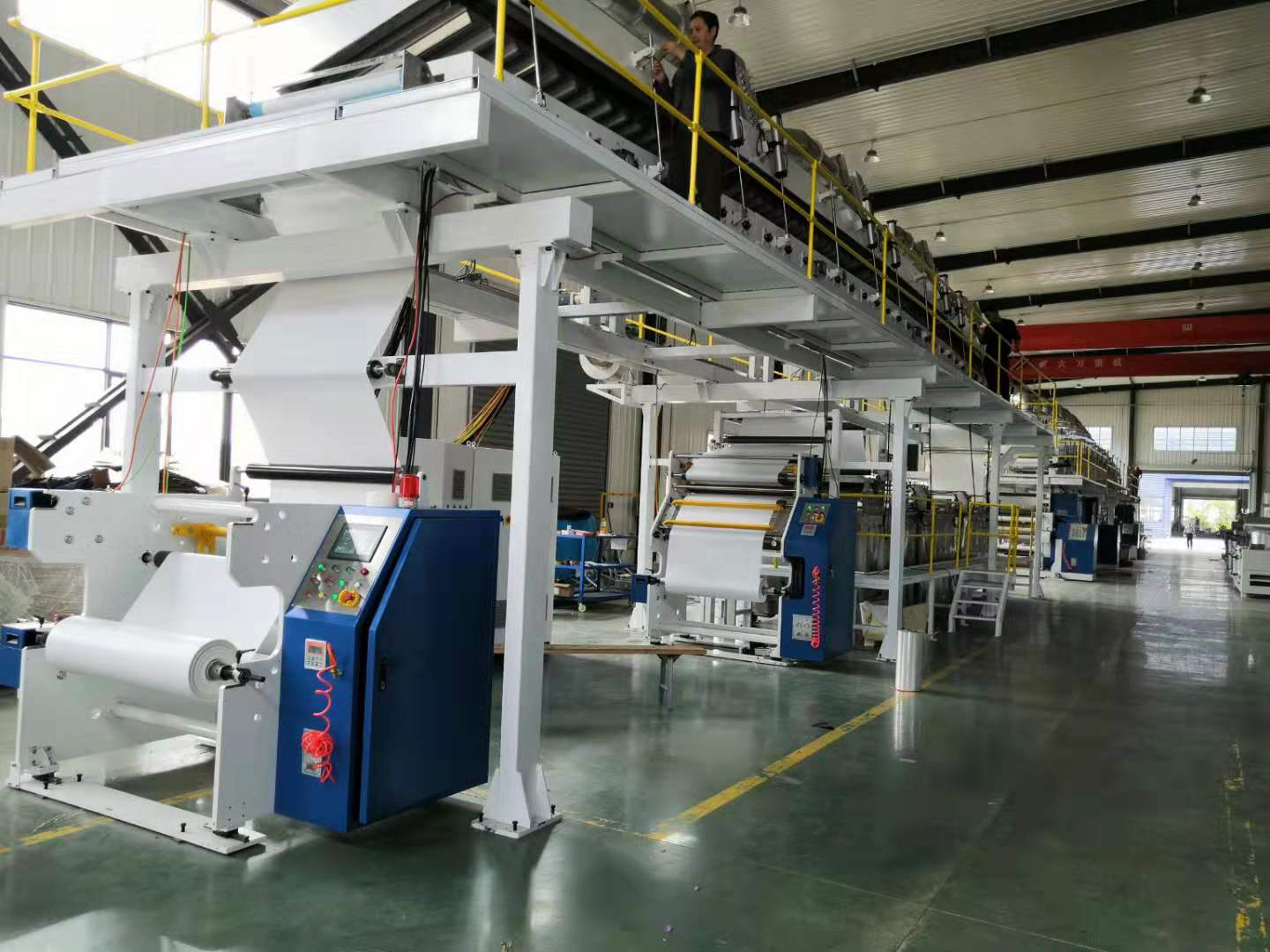

Feature
1.Siemens PLC control system with touch panel operation.
2.Double-station unwinding. Manual/ automatic splicing.
3. Set auto adjustment of coating thickness via touch panel.
4. Separate tension control in closed loop, with more stable production tension.
5. Arched oven design (conveyor belt/guide roller). Independent and precise temperature control for partitioned area.
6. Side top opening type of oven, easy for operation and cleaning.
7. Web guide control by servo motor, with smooth rewinding.
8. Major rewinding & peel off rewinding are double-station rewinding type.
Technical parameters
Max. substrate width | 1300 mm | 1600 mm |
Machine speed | 5~80 m/min | |
Unwind diameter | Maxφ1200mm | |
Unwind type | Double-station unwinding | |
Coating type | Comma scraper coating/transfer coating | |
Oven length | 4m/section*7 sections, 28m in total (customization available) | |
Max. temperature | 140℃ | |
Heating type | Natural gas/thermal oil/electricity | |
Rewind diameter | Maxφ1000mm | |
Rewind type | Double-station rewind | |
Tension range | 3~30kg Whole web load | |
Air source | 5Kg (Prepared by user) | |
Power source | 380V 50Hz 3P | |
