TBP-1300MU
FURIMACH

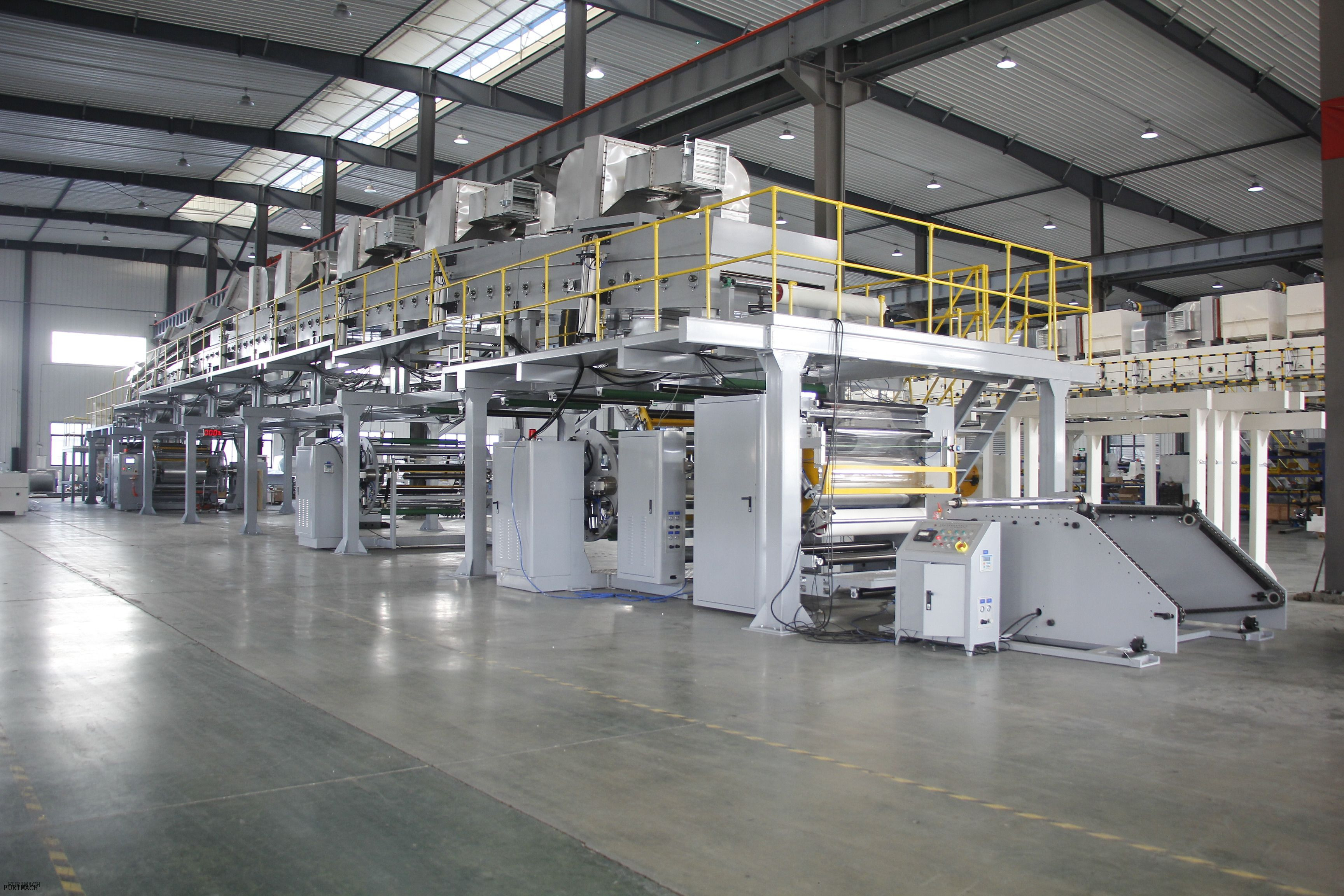

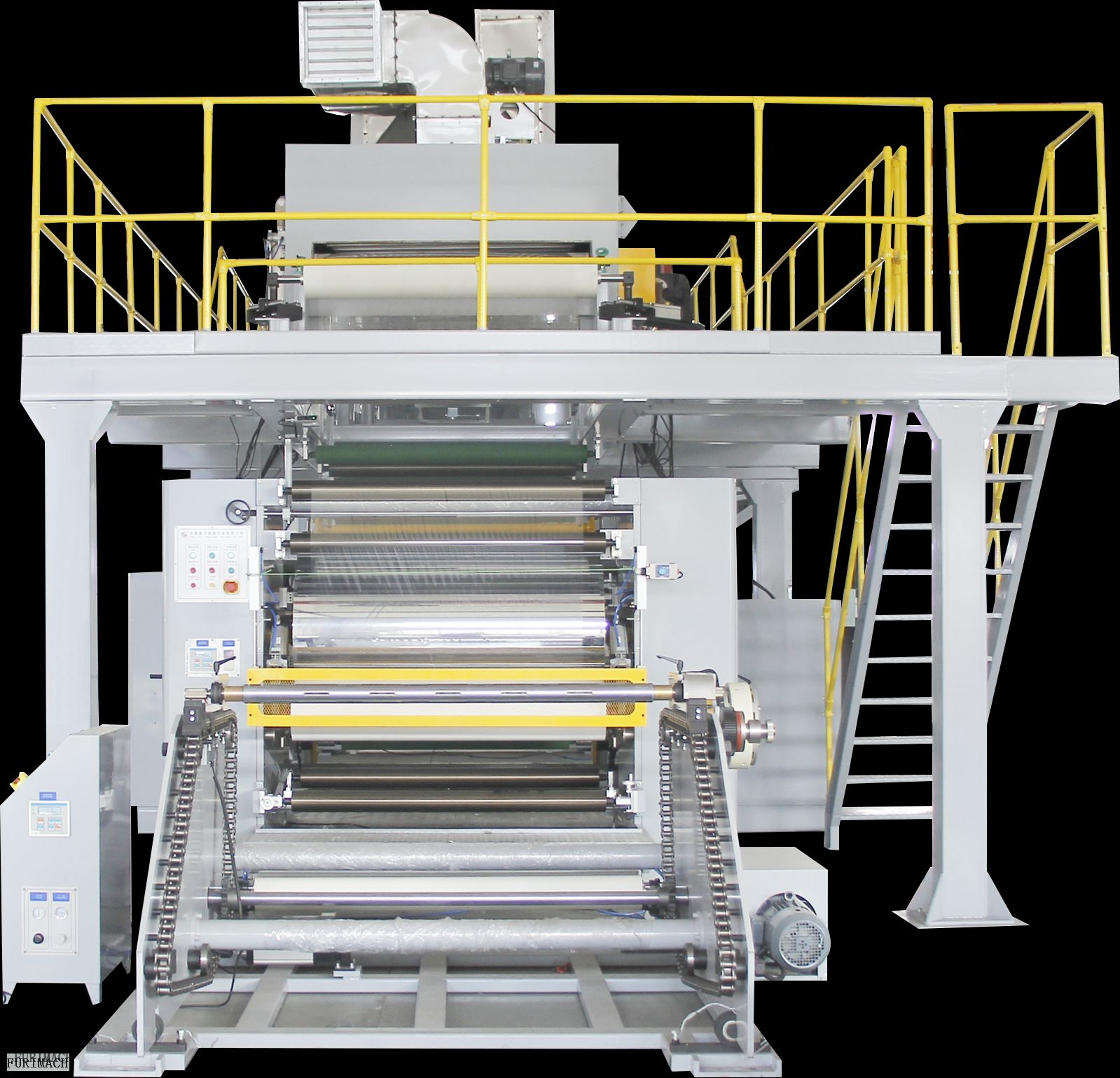

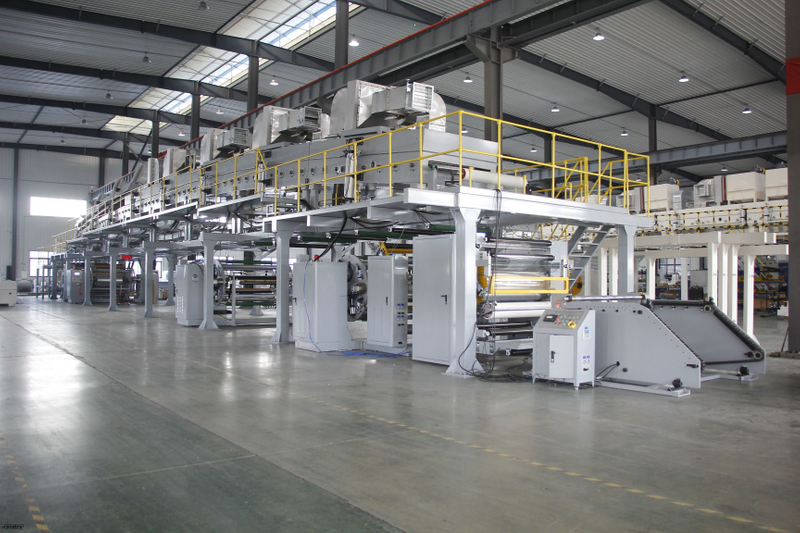

Multifunctional Adhesive Tape Coating Machine
Suitable for single-sided / double-sided adhesive tape coating production at a high speed.
Features:
Independent temperature control
Closed-loop tension control
Independent and strong machine beam and frame
Precision coating accuracy: +/-0.001mm for comma coating, with auto gap control

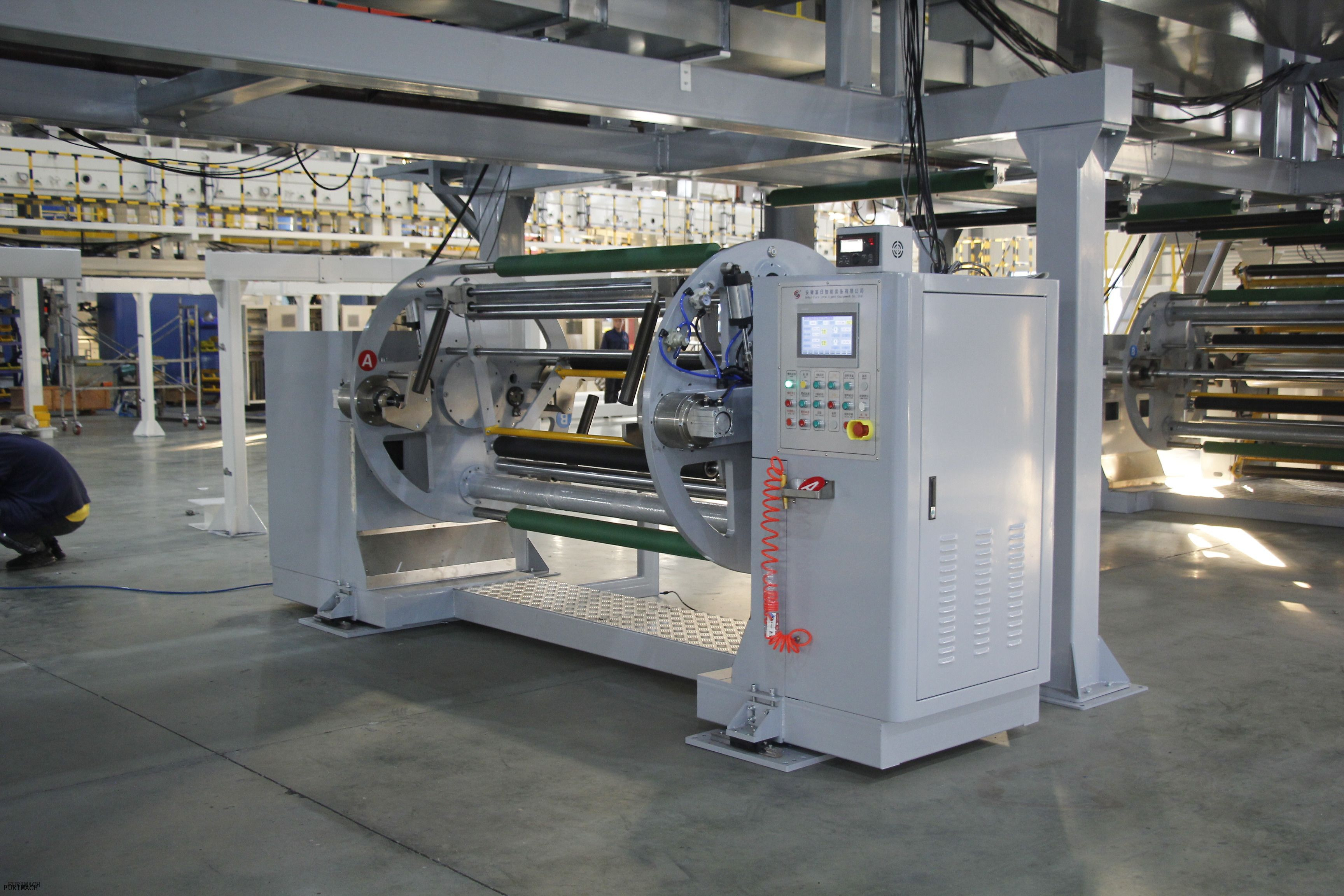

Turret double-station unwind / turret double-station rewind, with auto splice
Second unwind for lamination purpose
Second rewind for peel-off rewind purpose
From design, machining, sandblasting, painting, assembly, programming to testing, etc. --full range involved for quality control and relaible performance.
Each machine program and BOM are stored for tracing back and service.
Main Technical Parameters | |
Mechanical speed | Max.200m/min |
Effective substrate width | Max.1350mm |
Roller surface width | 1450mm |
Coating type 1 | Gravure roller reverse/forward coating |

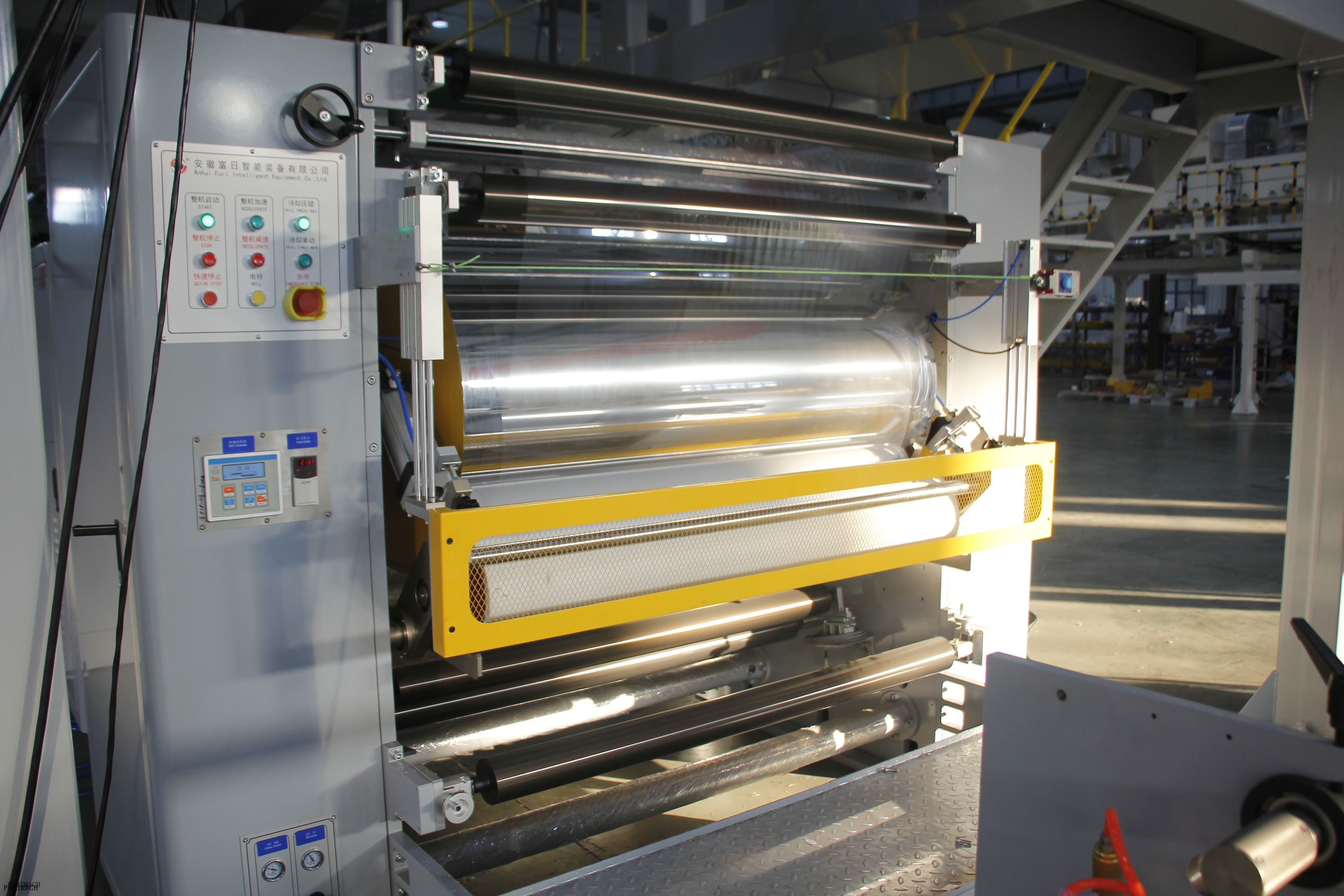

Coating type 2 | Comma bar + transfer roller coating |

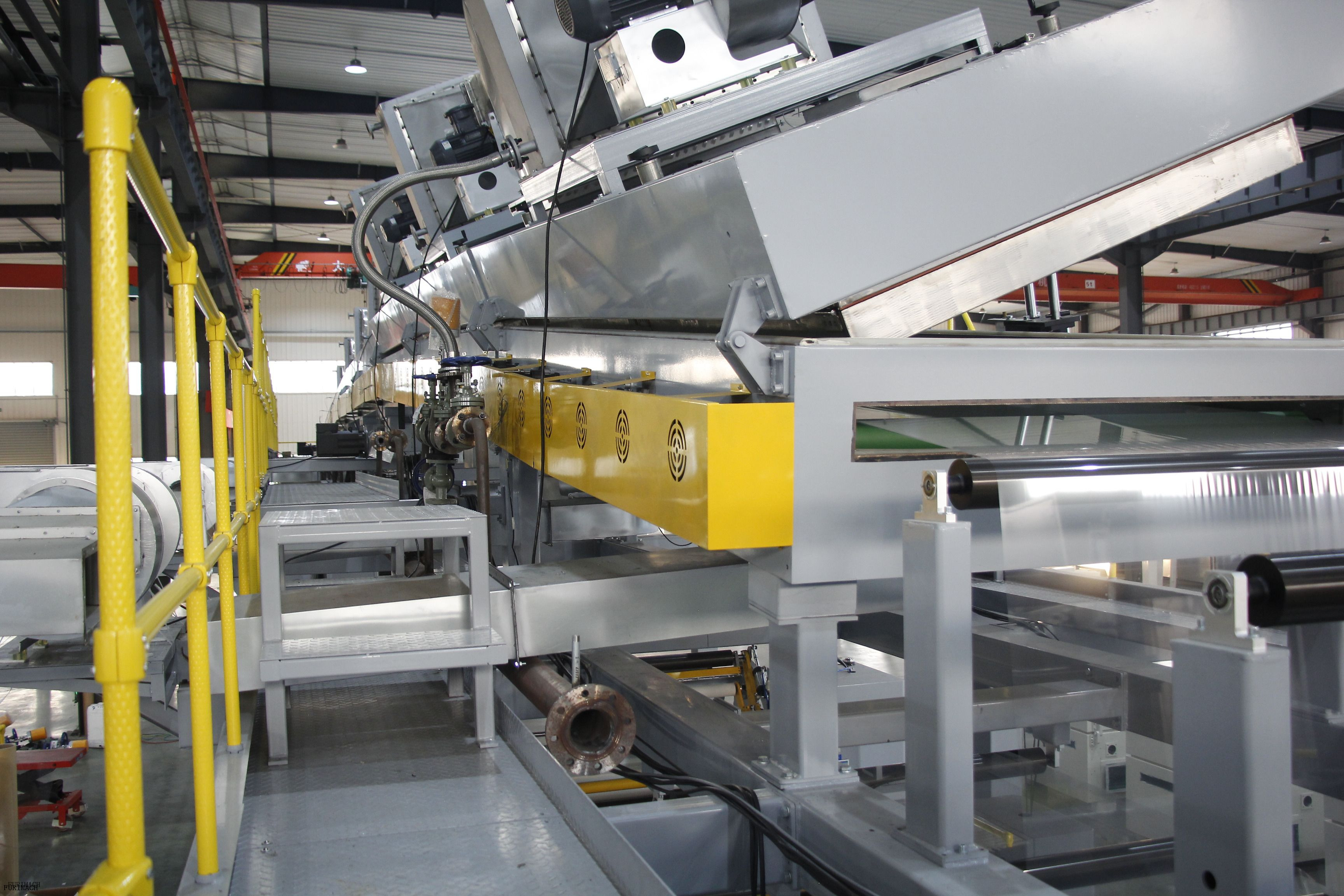

Heat type | Thermal oil |
Heating temperature | Max. 130℃ |
Temperature control precision | ±2℃ |
Substrate roll inner diameter | Unwind 3”/6”, 1# rewind 3”/6”，2# rewind 3”/6” |
Unwind diameter | 1# unwinder: Max.φ800mm 2# unwinder: Max.φ1200mm |
Rewind diameter | Max.φ800mm both |
Rewind edge tidiness | ±1.5mm |
Transmission power | Around 187.2KW |
Machine color | RAL 9001, customer can define |
