| Quantity: | |
|---|---|

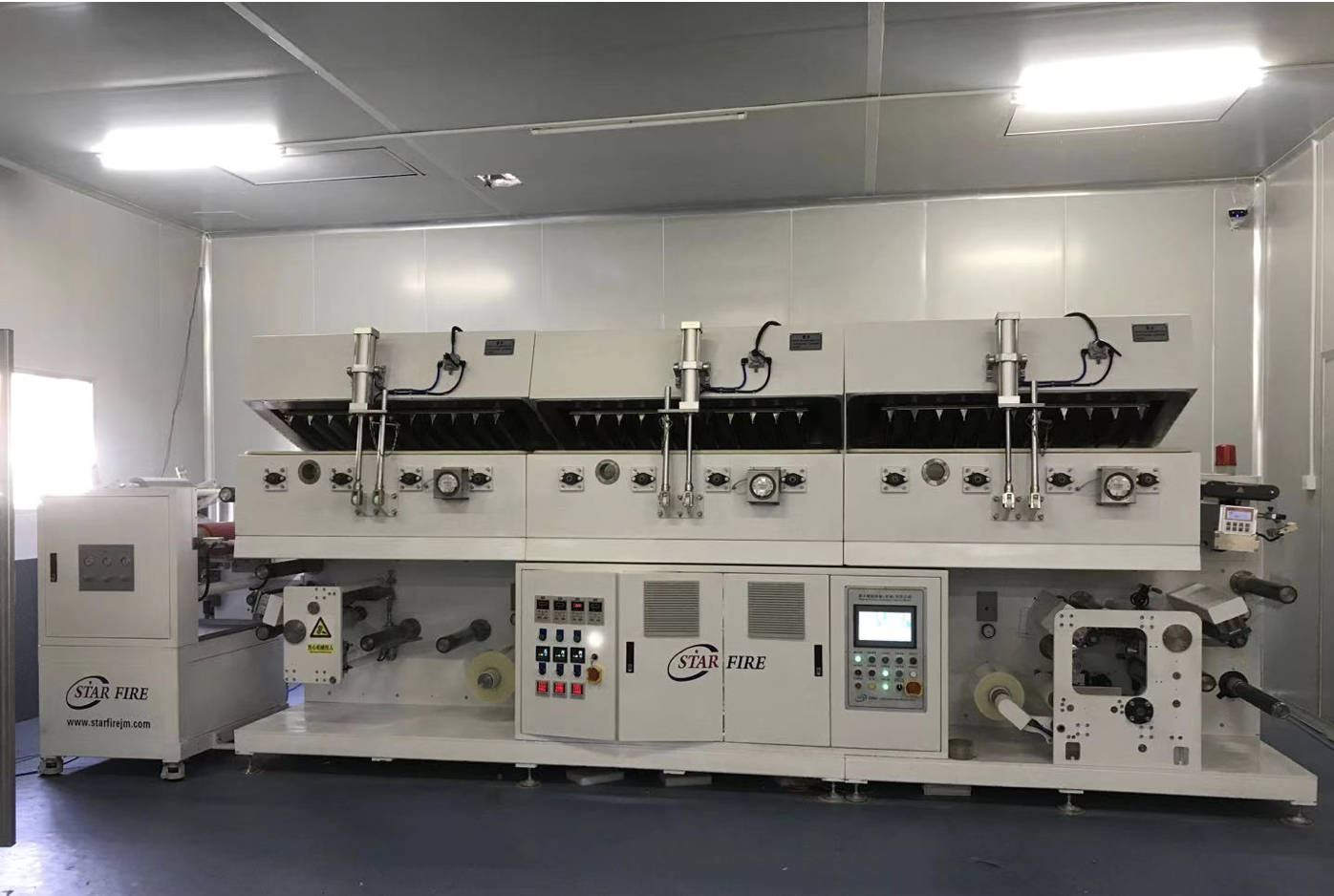

FR-350
FURIMACH
84778000
Feature
1. Programmable PLC integrated control, touch human-machine interface operation, intuitive and clear, easy to operate.
2. Double-station rewinding and unwinding, pneumatic chucking, fully automatic unloading, winding and automatic splice.
3. Adjustable coating volume and precise control of coating precision.
4. Automatic joint finding function for rewinding, reducing loss.
5. Automatic tension section control, the whole machine synchronous operation.
6. The oven adopts energy-saving box fan, with high drying efficiency, and adopts multi-segment temperature control to precisely control the temperature of each section of the oven according to the process requirements.
7. Multi-point automatic web guide control, to ensure the neatness of the winding.
Machine parameters
1. Effective width: 1300-1600mm
2. Unwind diameter: Max. 350mm
3. Winding diameter: Max. 350mm
4. Machine speed: 10m/min
5. Coating thickness (dry glue): 10um-40um
6. Coating method: micro-gravure, scraper, gravure and comma blade
7. Heating method: steam/thermal oil/natural gas
8. Oven temperature: 130℃
9. Total power about: 45KW
10. Oven length: 1.5m×3=4.5m
11. Using voltage: 380V 50HZ 3P
