XH-1600SP
FURIMACH

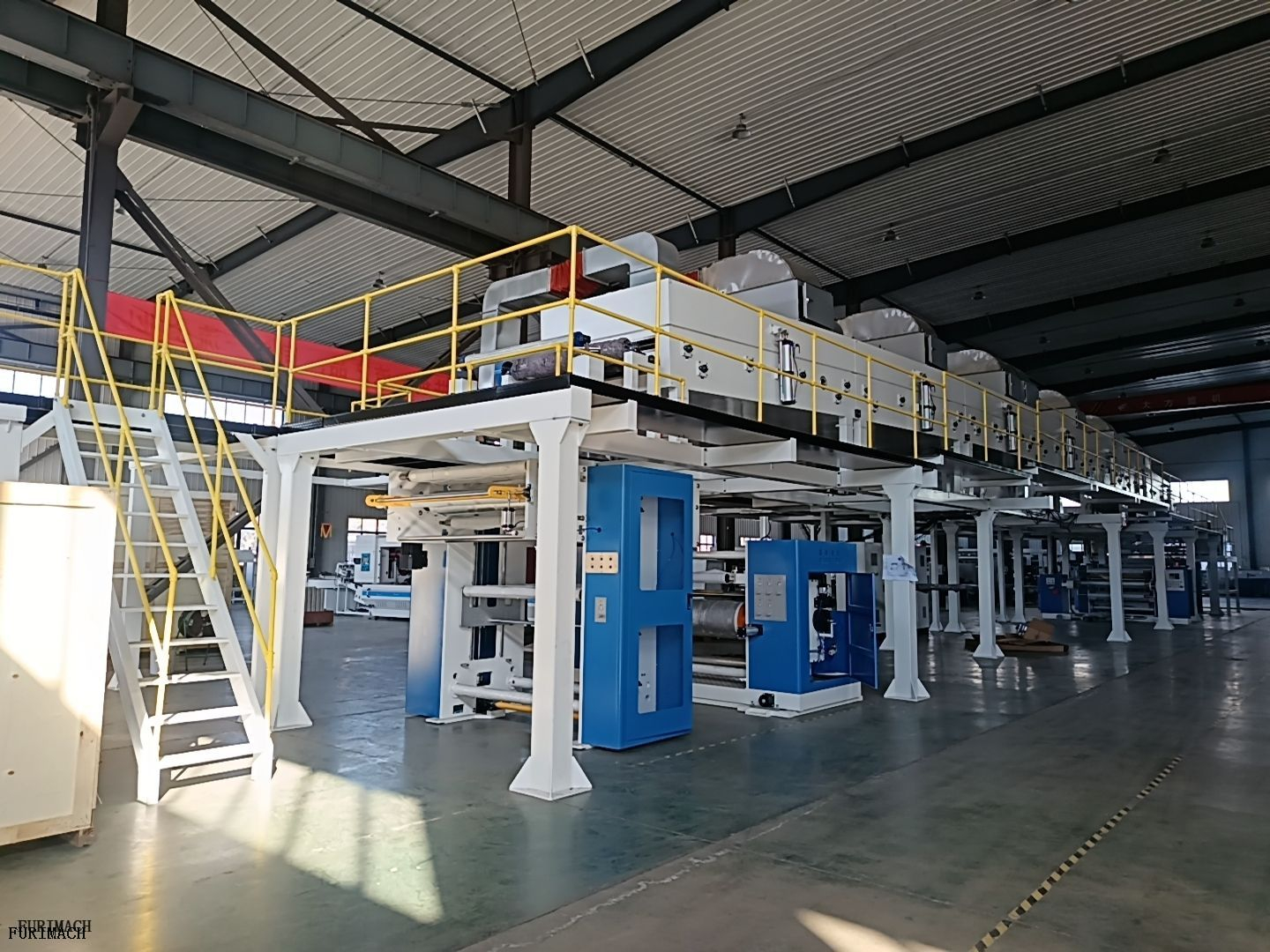

PE / PET Protective Film Coating Machine
Application: Polyethylene / Polyester Protection Film Making Machine, for high precision PE protective film coating production. Automatic production line. suitable for construction material surface / electronics / home appliances /stainless steel surface/ aluminum profile surface / wood surface, etc. Support water-based / chemical solvent-based /natural rubber adhesives coating.
No matter where your finished protective film is used--electronics or home buildings or metal sheets or profiles, etc. we can provide professional advice and machine design. The confidence comes from various successful cases. FURIMACH is very experienced in protective film coating, with a very good reputation in and abroad.
Note: Different from sticky PE/PET tape, which are used for fixing purpose, not surface protection purpose.
Features
1. Siemens PLC control system with touch panel operation. Emergency stop system, other mechanical safety mechanisms.
2. Double-station unwind without shutdown. Splice automatically without film wastage.
3. Gravure coating head and other suitable coating head designs, based on adhesive property and substrate.
4. Separate tension control in closed loop, with more stable production tension, no material stretching or deformation.

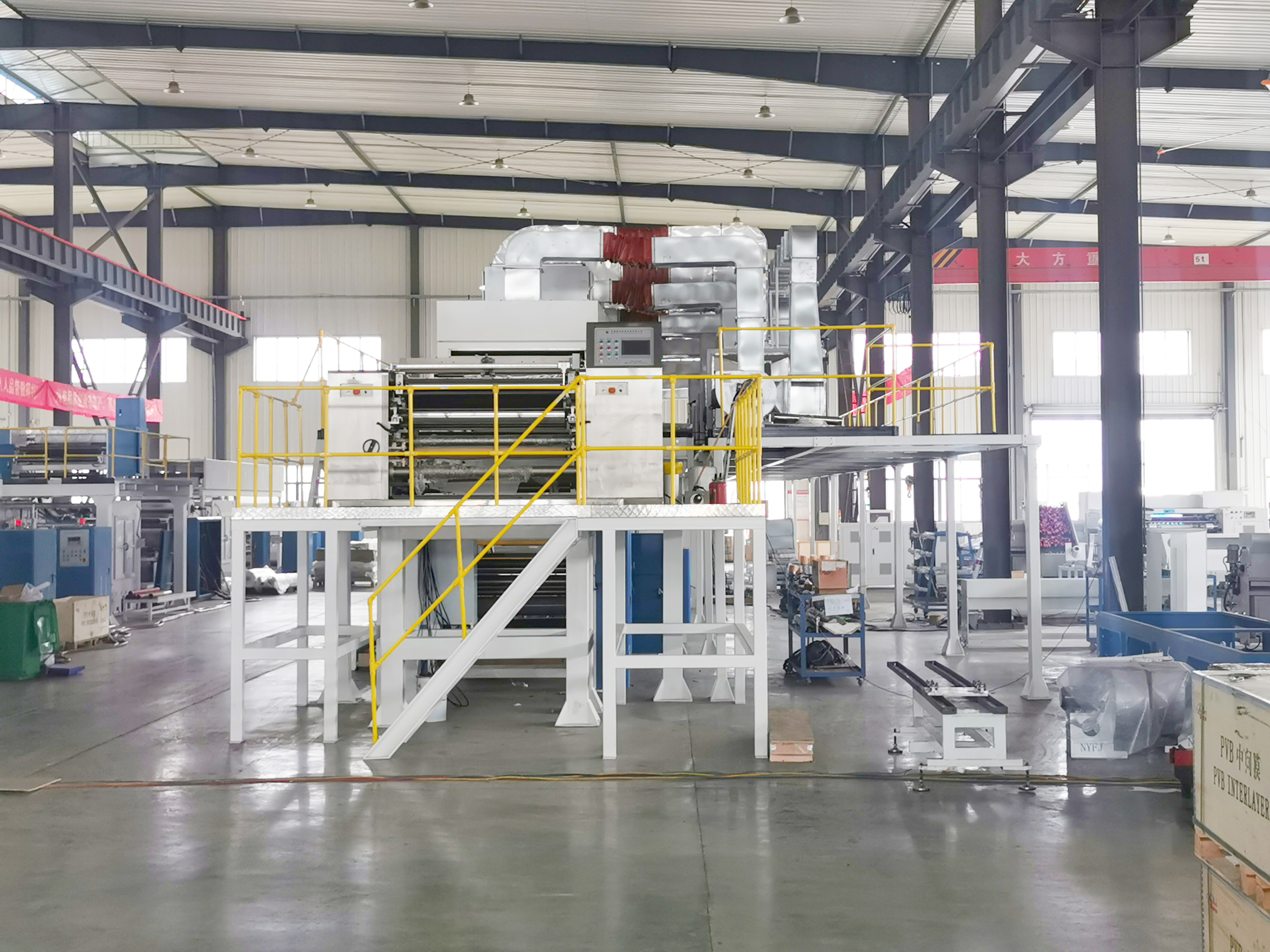

5. Arched oven design (conveyor belt/guide roller). Independent and precise temperature control for partitioned area.
6. Side top cylinder opening type of oven, easy for operation and cleaning. Also have other designs, depends on production requirement

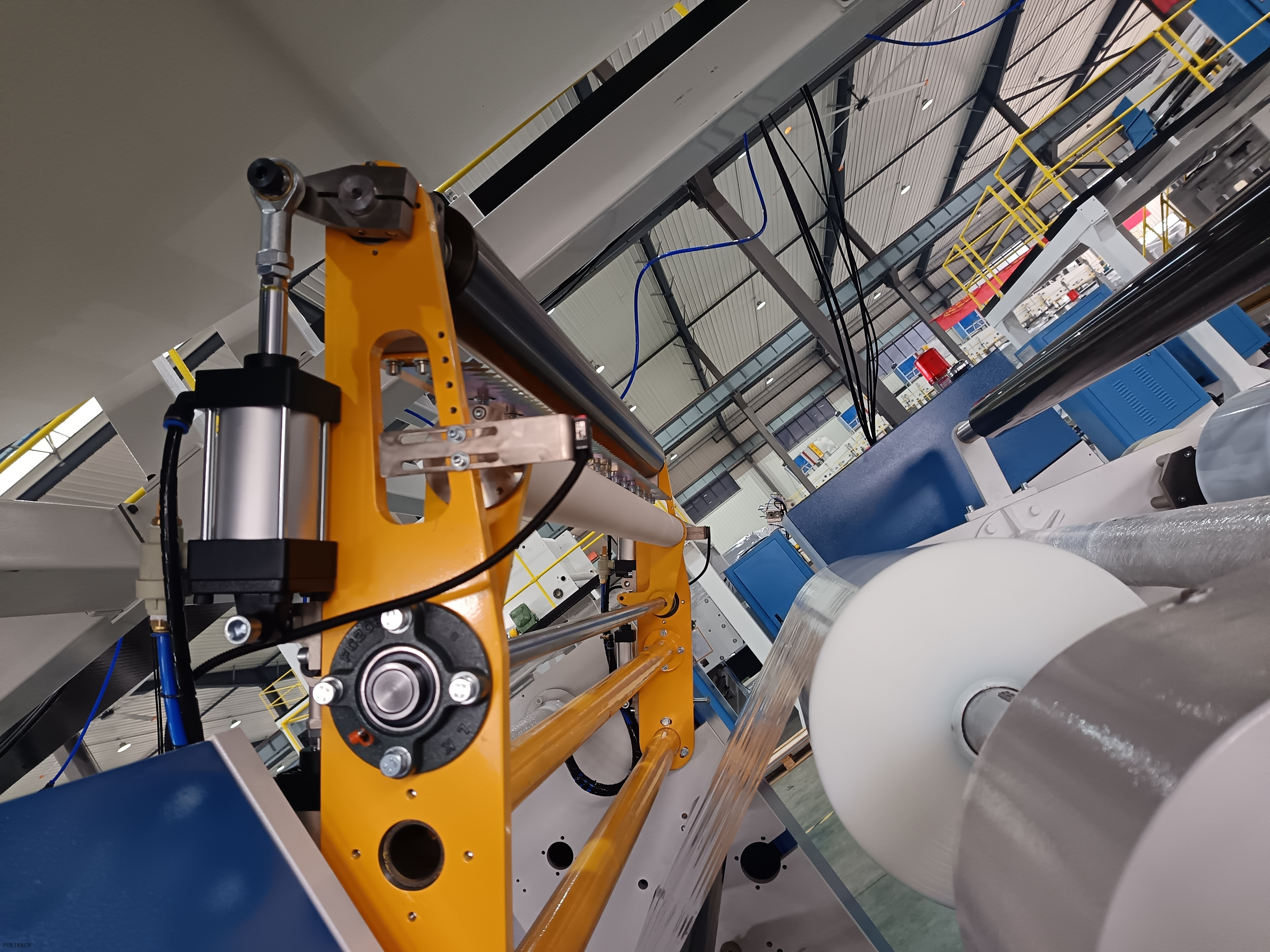

7. Web guide control by servo motor, with smooth rewinding.
8. Four-shaft/ Double-shaft surface rewinding, with automatic splicing and roll change. Rewinding electronic protective film without air bubbles.
9. Customized design according to customer's product requirement. Plenty of sucessful cases in and abroad. Expertise in this field.
10. Powerful overseas after-sales service teams, for on-site and remote support.
Technical parameters
Max. substrate width | 1000mm | 1300 mm | 1600 mm | others |
Machine speed | 20—150 m/min | |||
Unwind diameter | Maxφ800mm | |||
Unwind type | Double-station auto unwinding | |||
Coating type | Gravure roller coating (straight & reverse), etc. | |||
Oven length | 4m/section*7 sections, 28m in total, can customise. | |||
Max. temperature | 130℃ | |||
Heating type | Steam/thermal oil/electricity/hot air, etc. | |||
Rewind diameter | maxφ300--800mm | |||
Tension range | 3~30kg Whole web load | |||
Air source | 5Kg (Prepared by user) | |||
Power source | 380V 50Hz 3P | |||
Machine dimension | 32000*6500*5500, etc. | |||
