SLD-61522
FURI
84411000

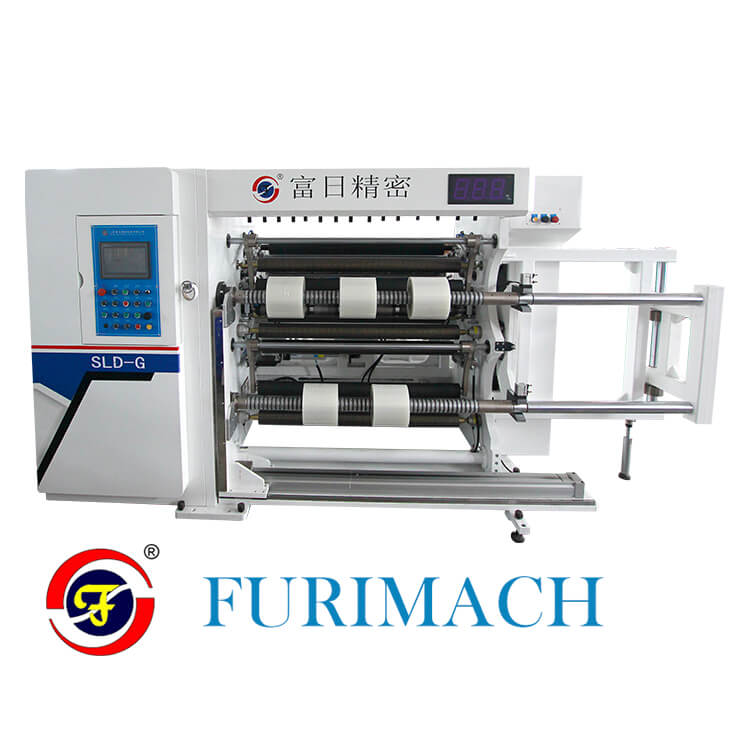

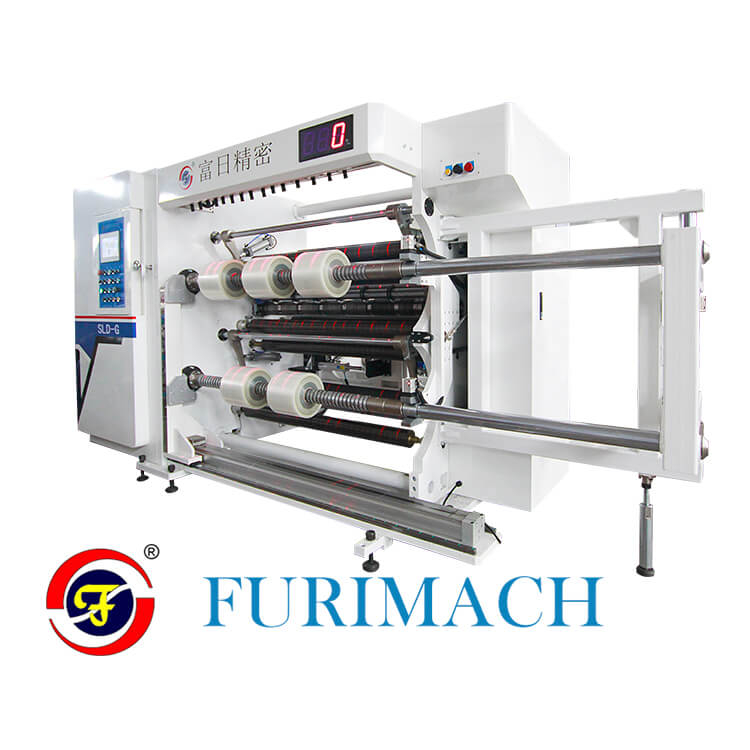

SLD-61522 High Speed Laminated Film Slitting Machine
Application
Suitable for slitting rewinding various laminated films such as BOPP film, CPP Film, PE film, PVC film, PET Film etc.
Feature
l Unwind unit: shaftless unwind stand with 3” & 6” cone chucks
l Automatic web guide control: EPC/LPC
l Automatic tension control
l Rewind duplex differential shaft with slip ring fully arranged
l Siemens PLC programmable control
l 10” touch panel to input parameters
l Line speed up to 500meters per minute
l Slitting unit: razor blade (standard) & shear blade (optional)
l Edge trimming by blower (side type)
l Infrared fray auxiliary core positioning system to save time
l Auto push-off device with finished reel unloader system (optional)
Main Technical Parameters
| Machine width | 1.3M/1.6M |
| Min. slitting width | 30mm |
| Max. unwind diameter | 800mm |
| Max. rewind diameter | 600mm |
| Max. speed | 500M/min |
| Paper core I.D. | 3 "/6 " |
| Power source | 380V 50HZ 3P |
| Certification | CE |
