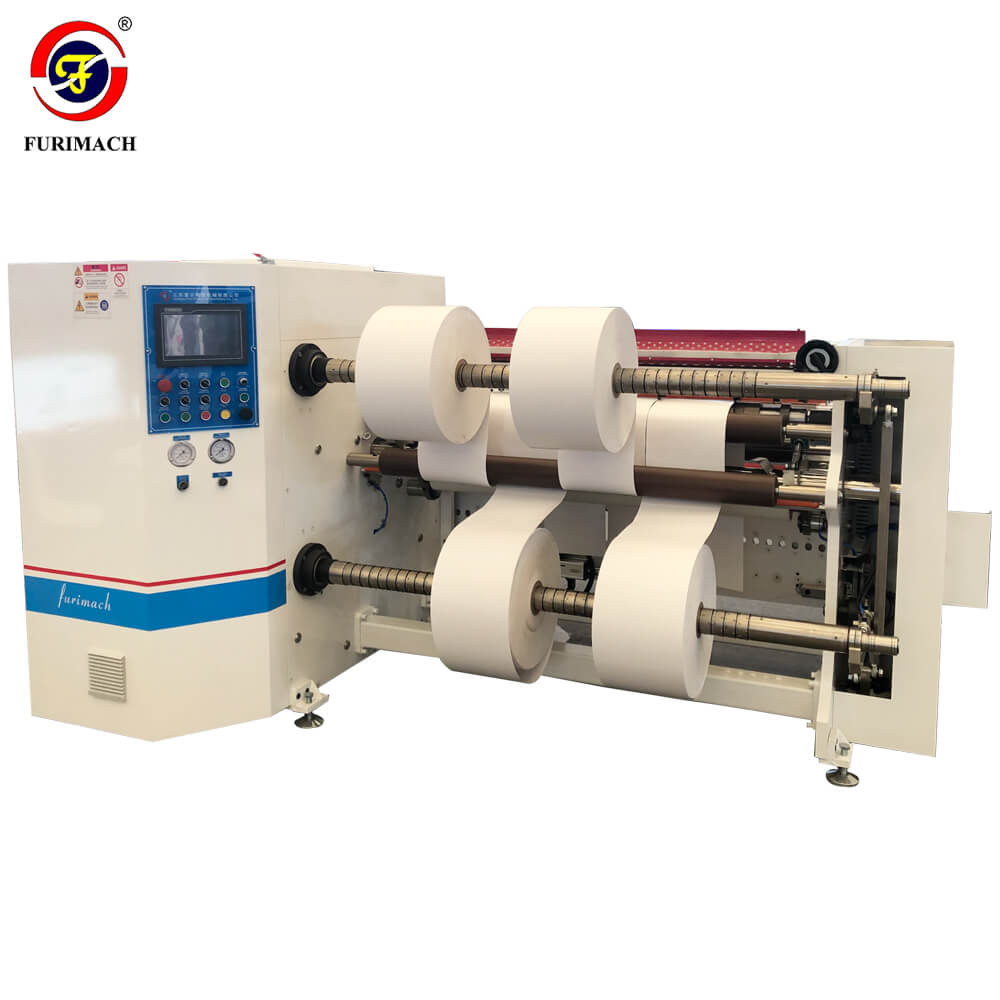

SLD-E Double-shaft Automatic Labelstock Paper Slitting Machine

Feature

1. The motor unit adopts three-motor connective control with high speed and stable tension control.

2. Both unwind & rewind unit are equipped with tension detecting device with PLC auto constant tension control system.

3. Main drive uses rubber roller pressing type to avoid asynchronous issue between material and roller. And unwind & rewind tension is separated to ensure whole tension more stable.

4. Rewind part uses differential winding shafts to make sure each roll tension is well controlled.

5. Clamping devices are installed in front of rewind unit to fix the after-slit materials and keep after-slit tension and rewind position same.

6. Machine guide rollers are aluminum type, with hard anodizing treatment before slit, and anti-sticky treatment after slit.

7. Edge waste treatment uses big centrifugal fan.

8. Slitting part uses shear blades (side pick-up type) for easy change and arrangement of bottom blade and spacers when slitting different sizes.

9. Unwind unit has automatic web guide control system, for auto correction of uneven jumbo roll and reduce material waste.

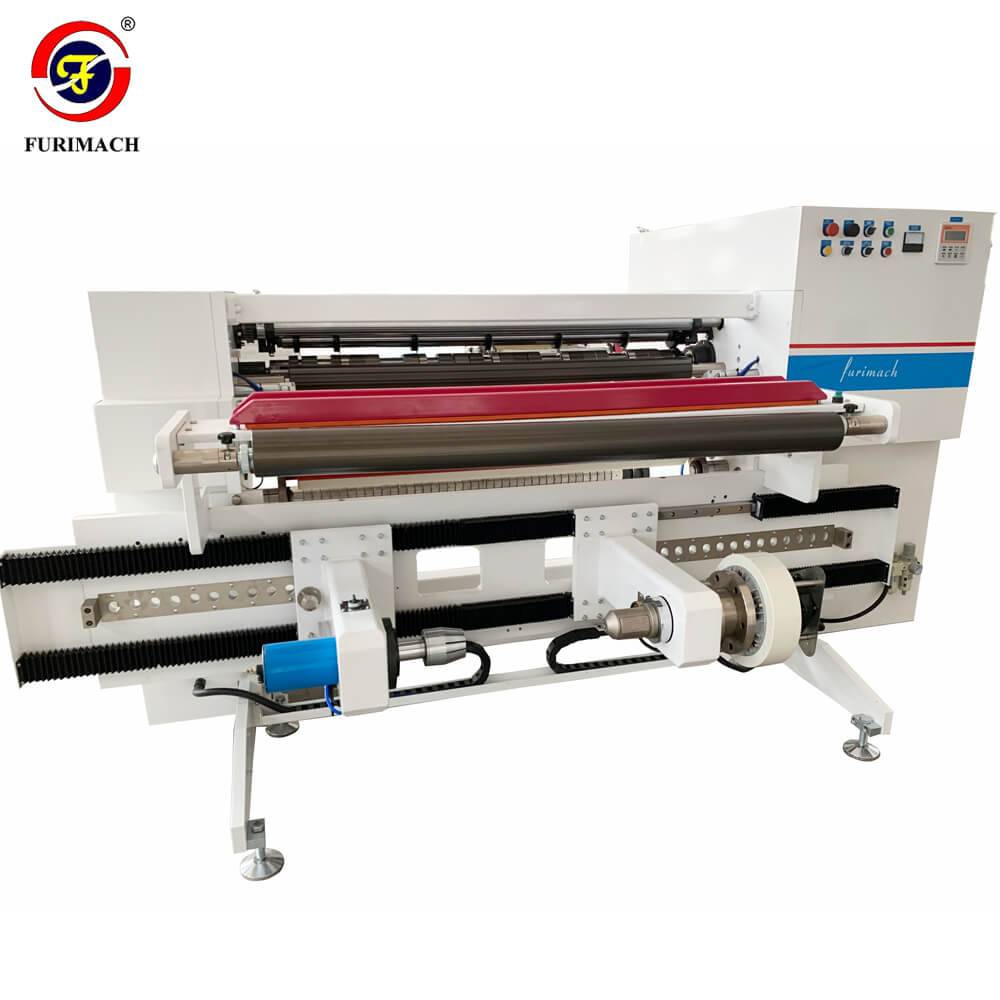

10. Unwind system adopts connect type shaft-less stand, left and right movement manually control.

Optional Items

1.     Finished reel unloading device: separate unloader device to reduce labor force.

2.     Splice table: with air cylinder fixing device, for fast connecting web and save labor’s time.
