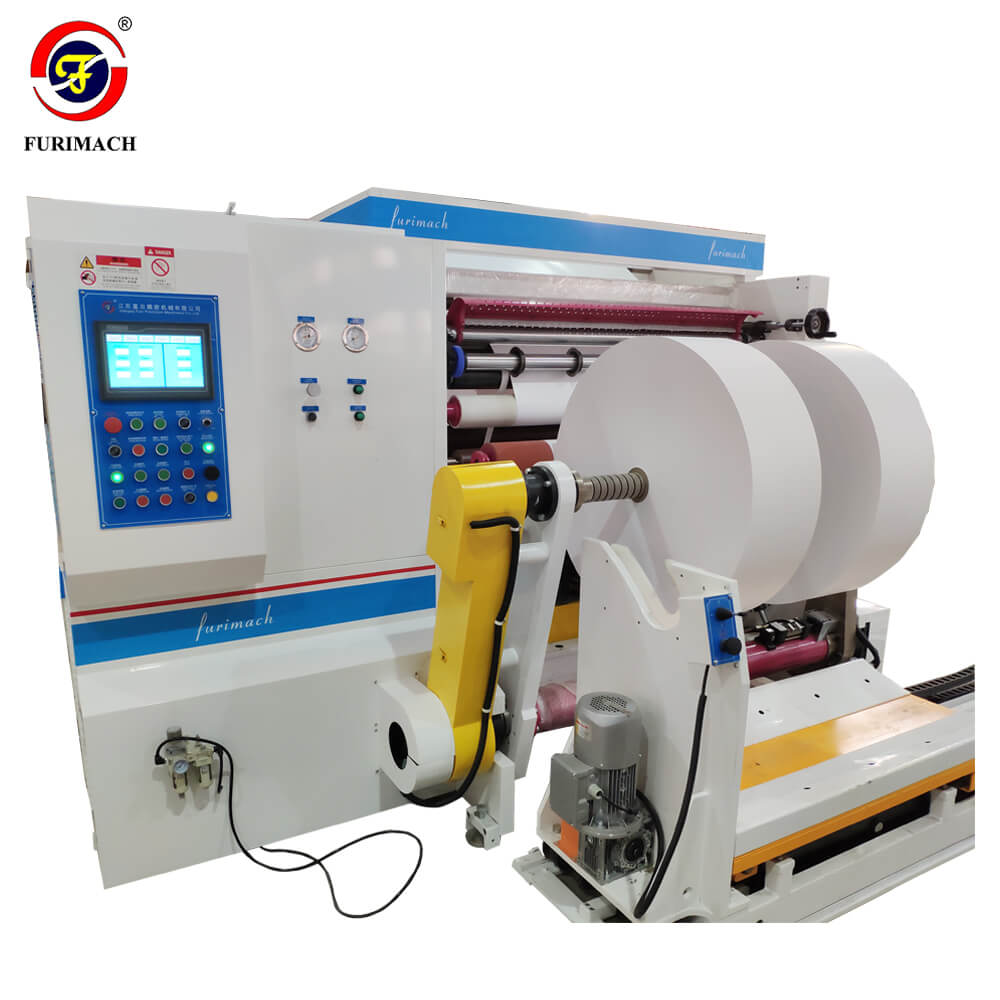

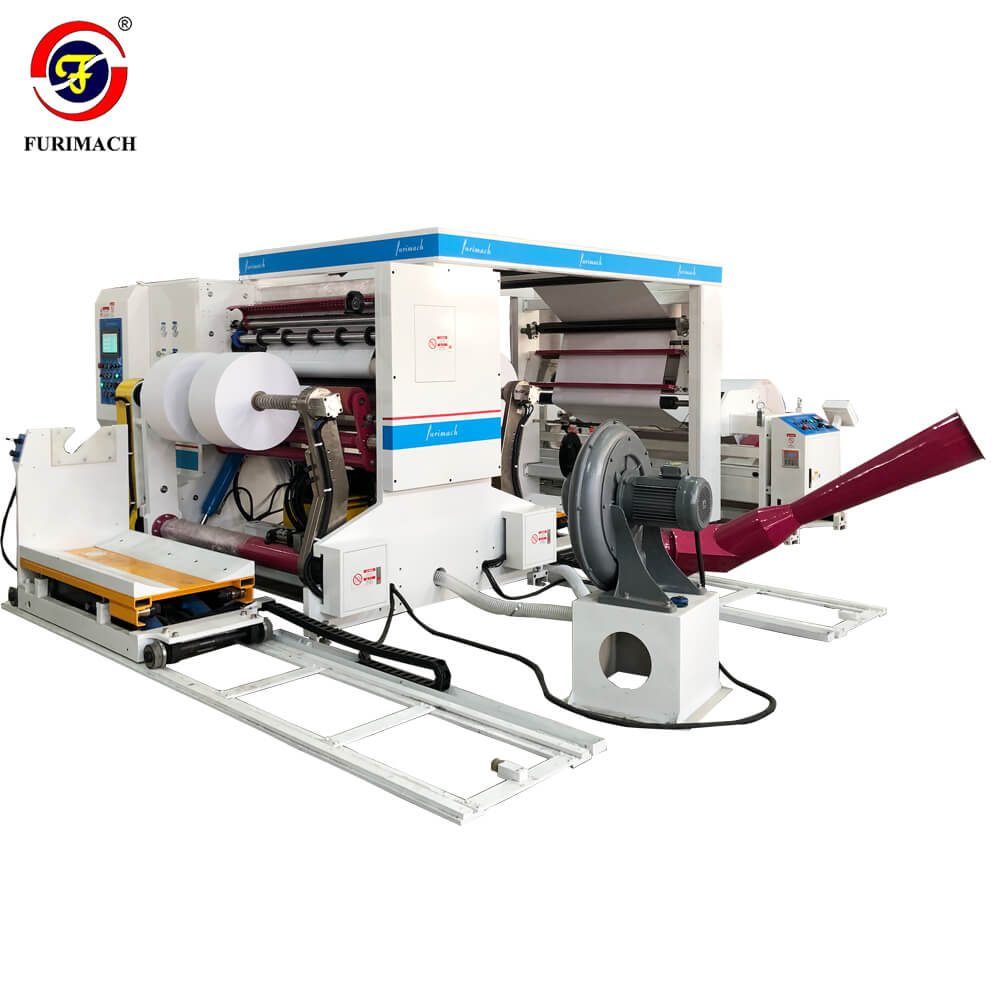

SLD-G Gantry Type High-Speed Self-Adhesive Sticker Paper Slitting Machine

Feature

1. The motor unit adopts three-motor connective control with high speed, stable tension and nice-looking products.

2. Both unwind & rewind unit are equipped with tension detecting device with PLC auto constant tension control system.

3. Main drive uses rubber roller pressing type to avoid asynchronous issue between material and roller. And unwind & rewind tension is separated to make whole tension more stable.

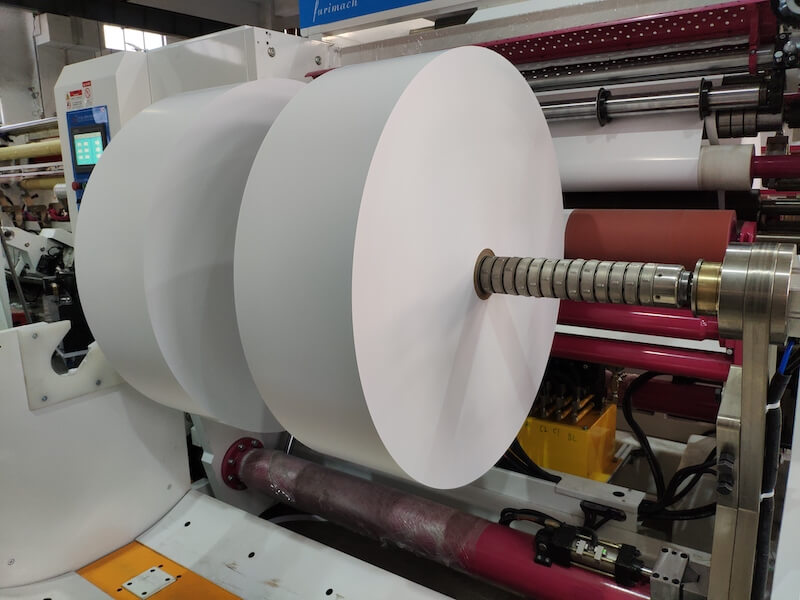

4. Rewind part uses differential winding shafts to make sure each roll tension is well controlled.

5. Edge waste treatment uses big centrifugal fan.

6. Slitting part uses shear blades (side pick-up type) for easy change and arrangement of bottom blade and spacers when slitting different sizes.

7. Unwind unit has automatic web guide control system, for auto correction of ununiform jumbo roll and reduce material waste.

8. Unwind system adopts connect type shaft-less stand, left and right movement manually control.

Optional Items

1.     Finished reel unloading trolley

2.     Splice table: with air cylinder fixing device, for fast connecting web and save labor’s time.

Technical Parameters
