TBP-1600SOLAR
FURIMACH
Solar Perforated Tape Production Line

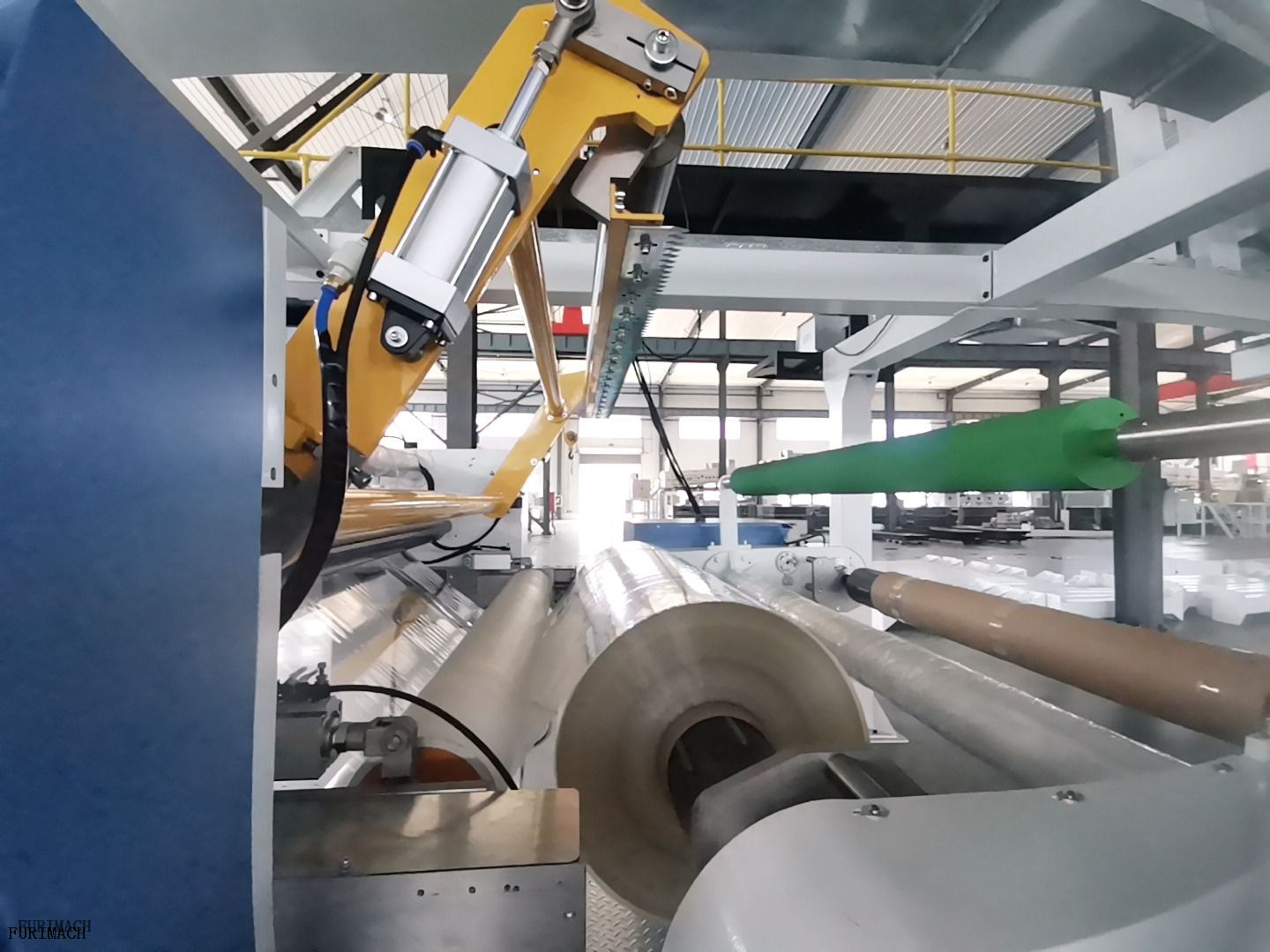

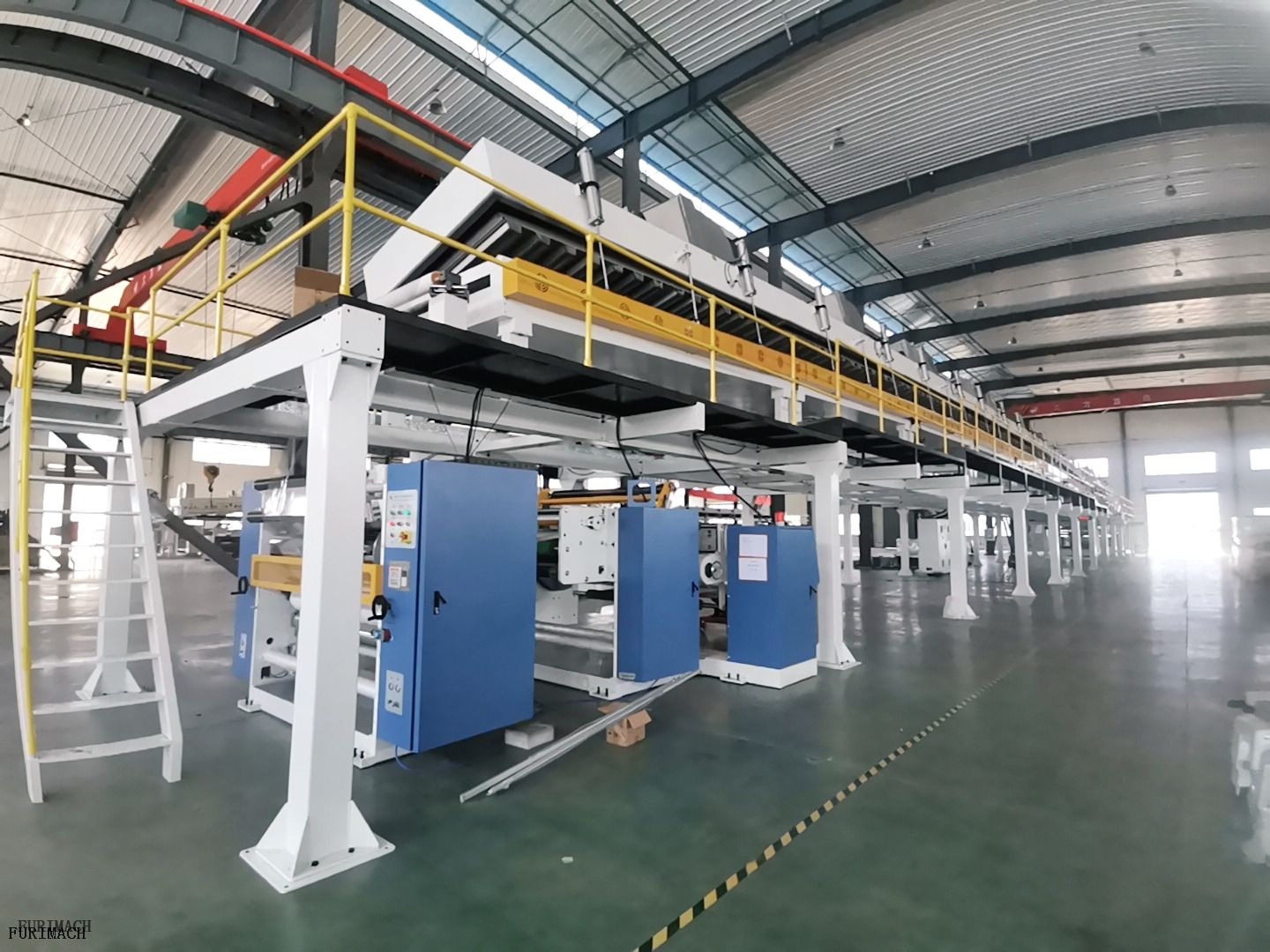

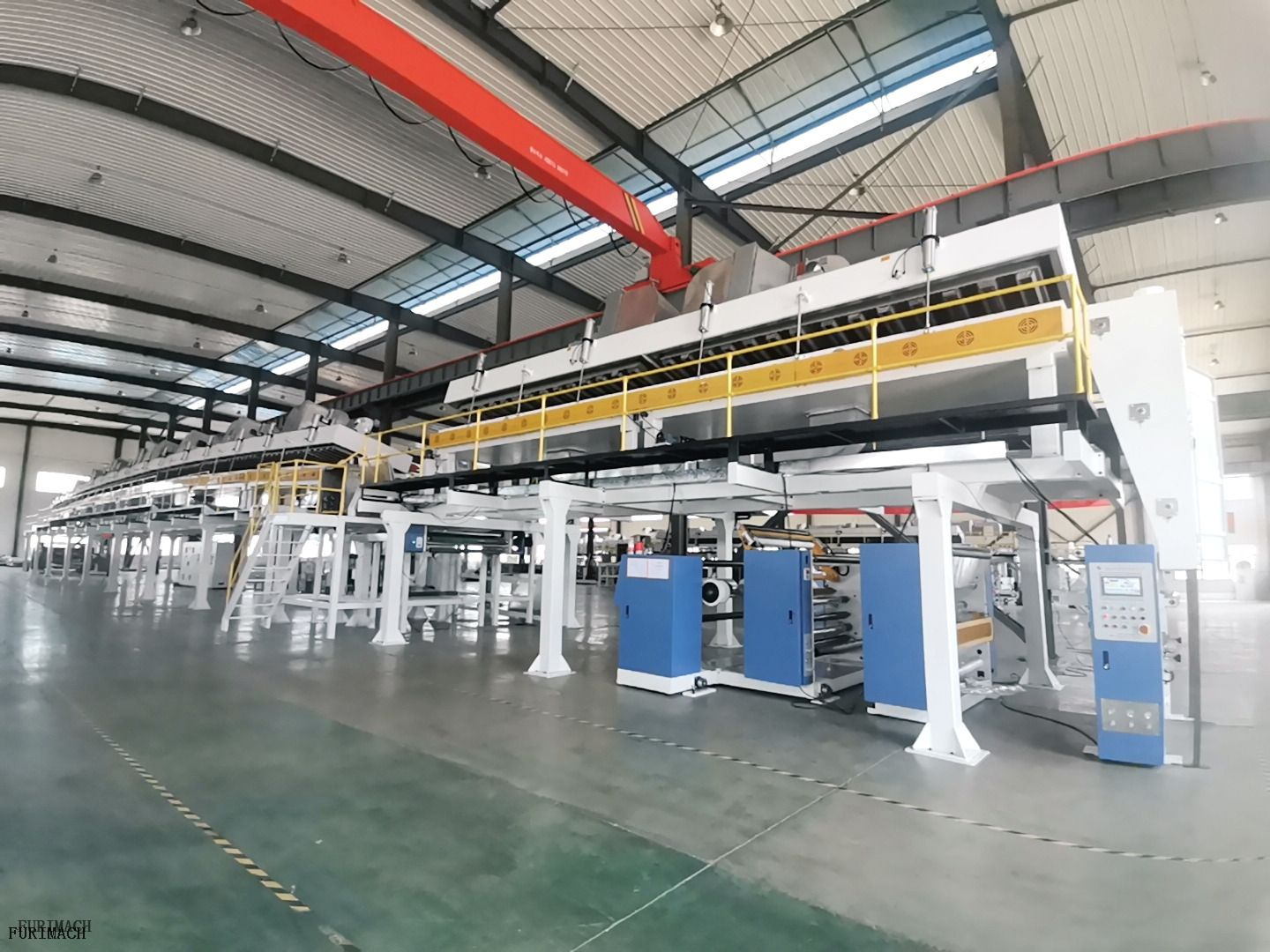

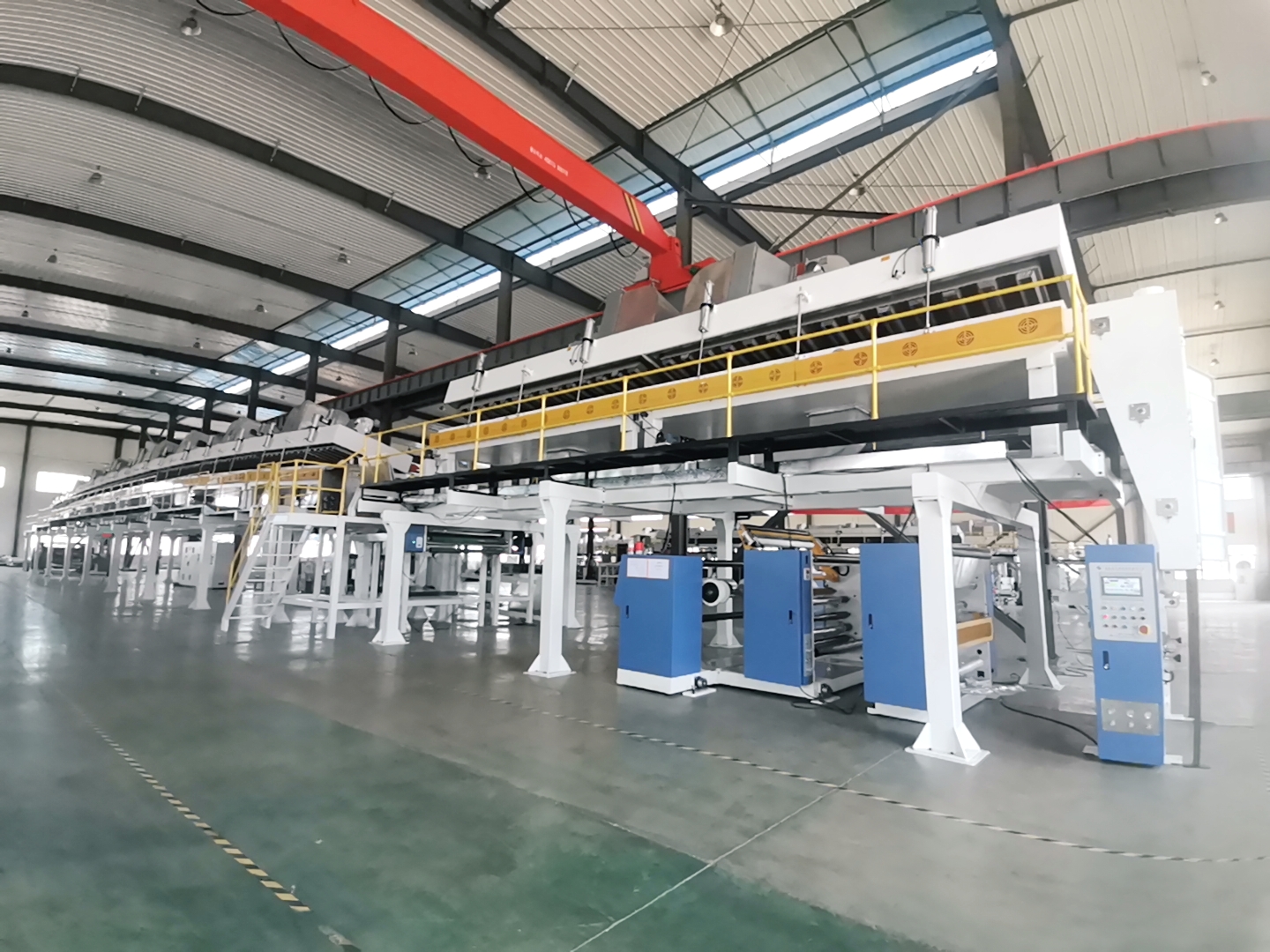

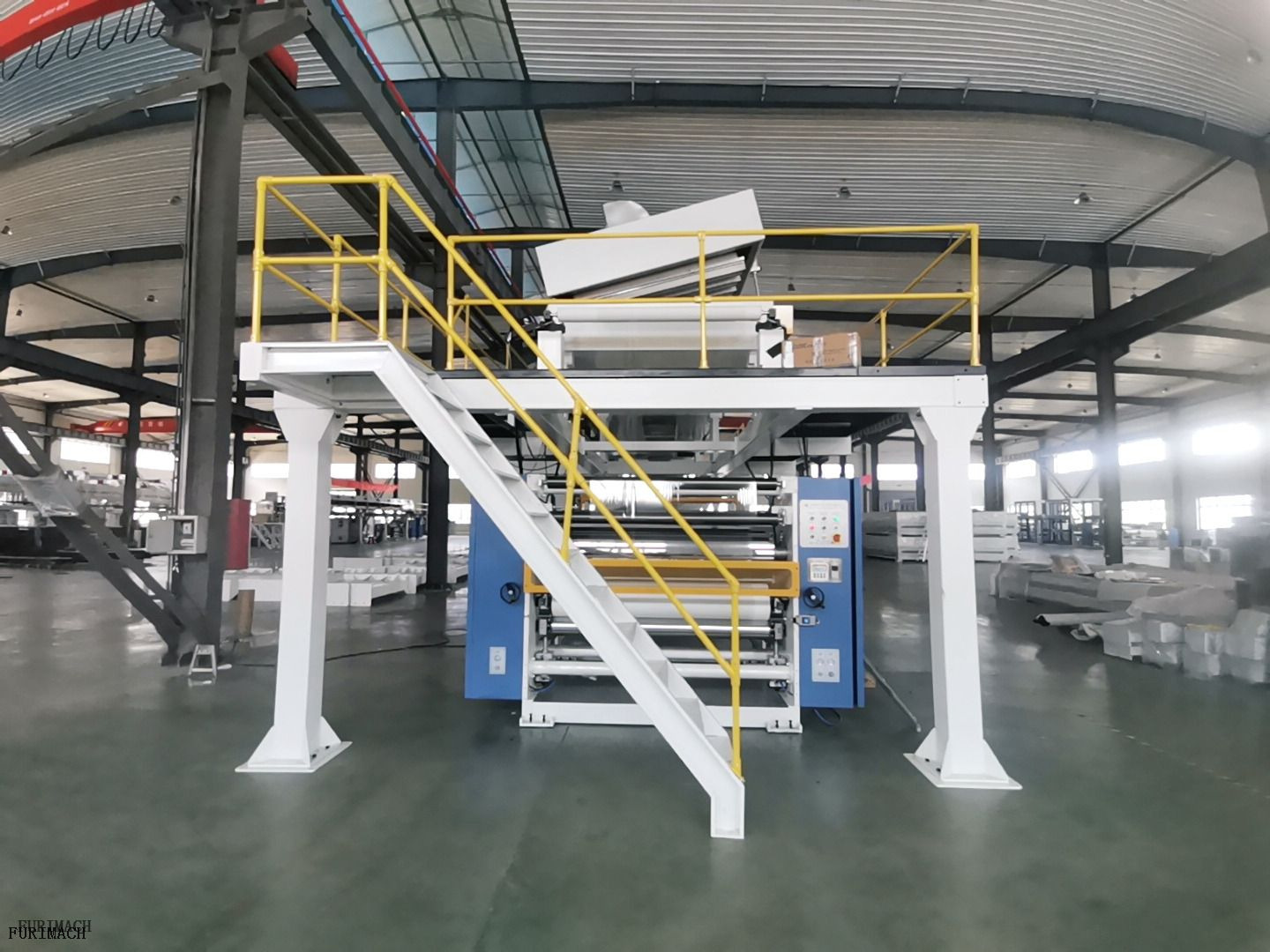

It consists of solar perforated tape coating machine & solar perforated tape punching machine (rotary die cutting machine).
Main Technical Parameters of soler perforated tape coating machine | |
Effective coating width: | 1600mm |
Roller surface width: | 1750mm |
Base material | PET |
Unwind paper core diameter | 3"/6" |
Max. rewind diameter: | Φ800mm |
Rewind paper core diameter | 3"/6” |

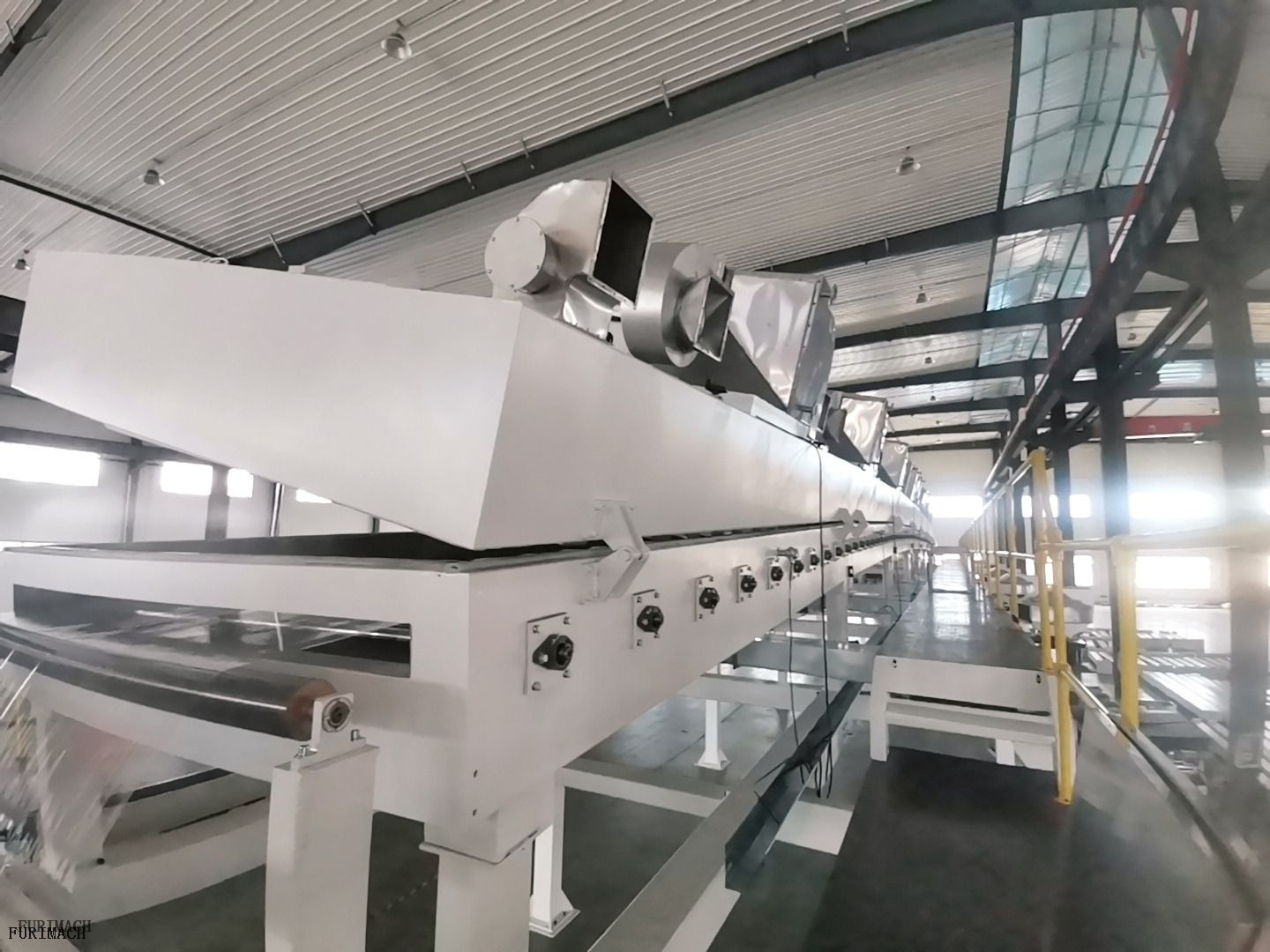

Heating type: | Electricity or others |
Rewind edge tidiness: | ±2mm |
Mechanical speed： | 80m/min |
Coating speed | 10~60m/min (acutal coating speed depends on adhesive property, coating amount, etc.) |
Driver power | Around 130KW |
Machine dimension | L*W*H: about 57.5m*4.7*5.6m |

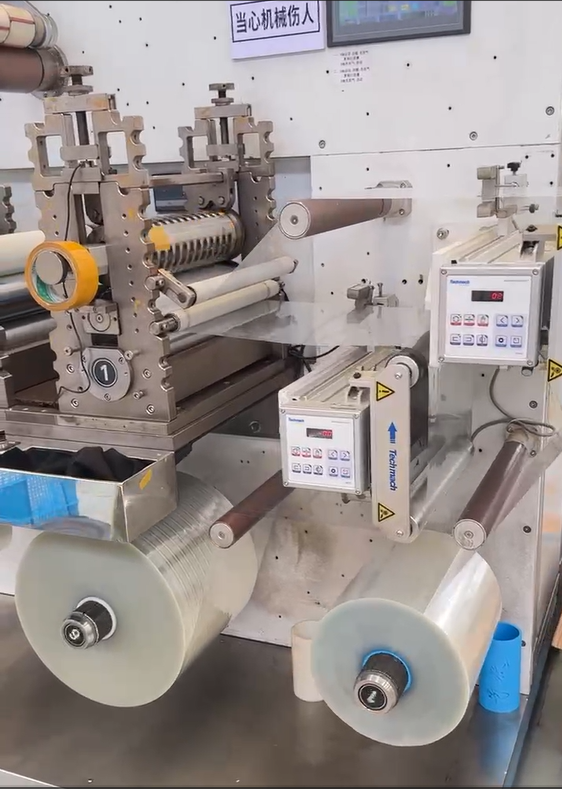

Main Technical Parameters of soler perforated tape punching machine
Blade station: 3 sets
Unwind diameter: Max. 500mm
Rewind diameter: Max. 300mm
Rewind/unwind core size: 3”
Single-blade die-cutting accuracy: ±0.2mm
Touchscreen: 7”
Speed: Max. 60m/min
Power: 13 KW
Voltage: 380V 3P 50Hz
Machine dimensions (approx.): 2.5*2.0*1.8m (length*width*height)
Weight: About 4 tons
