RET-232A
FURIMACH

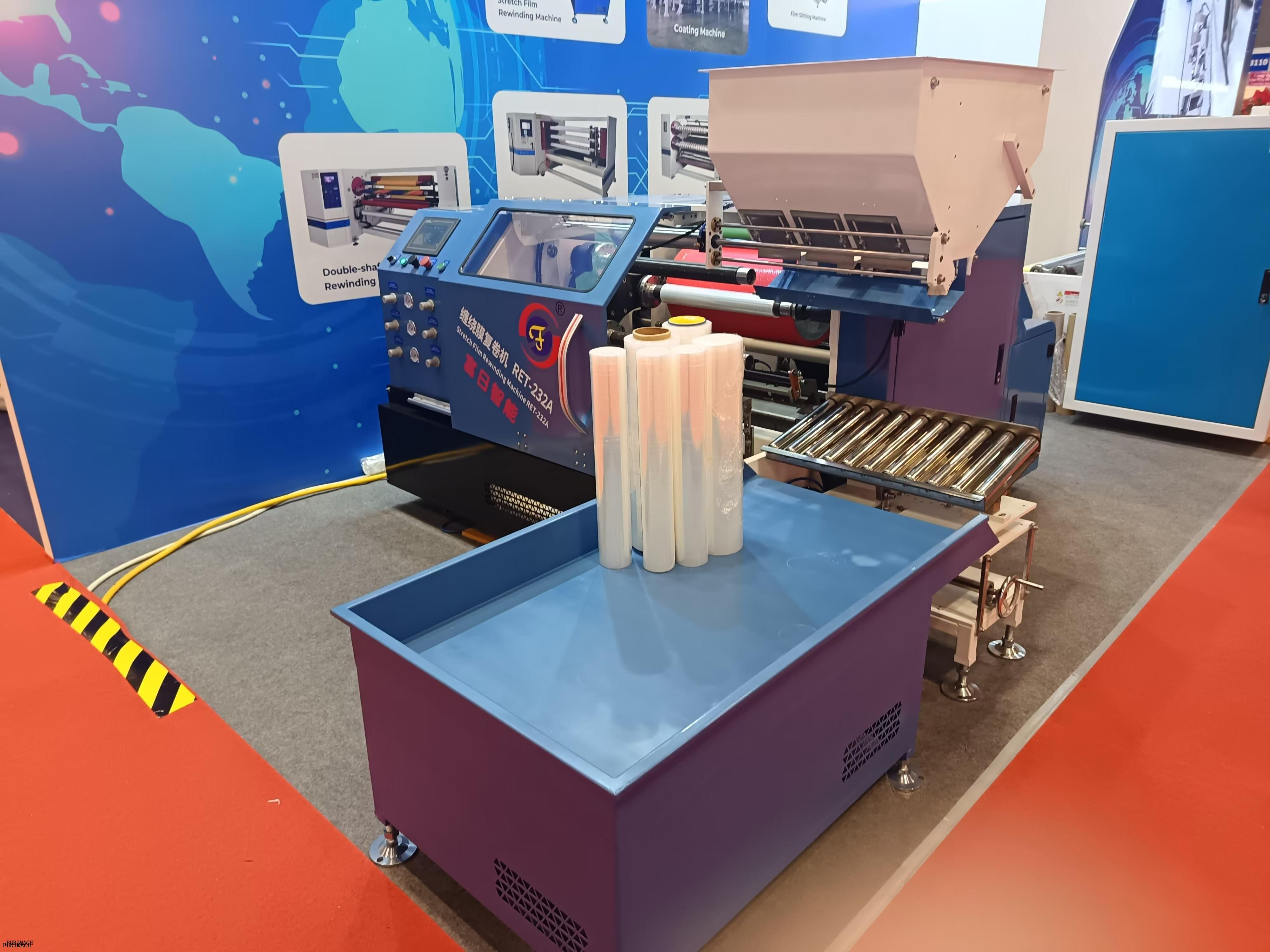

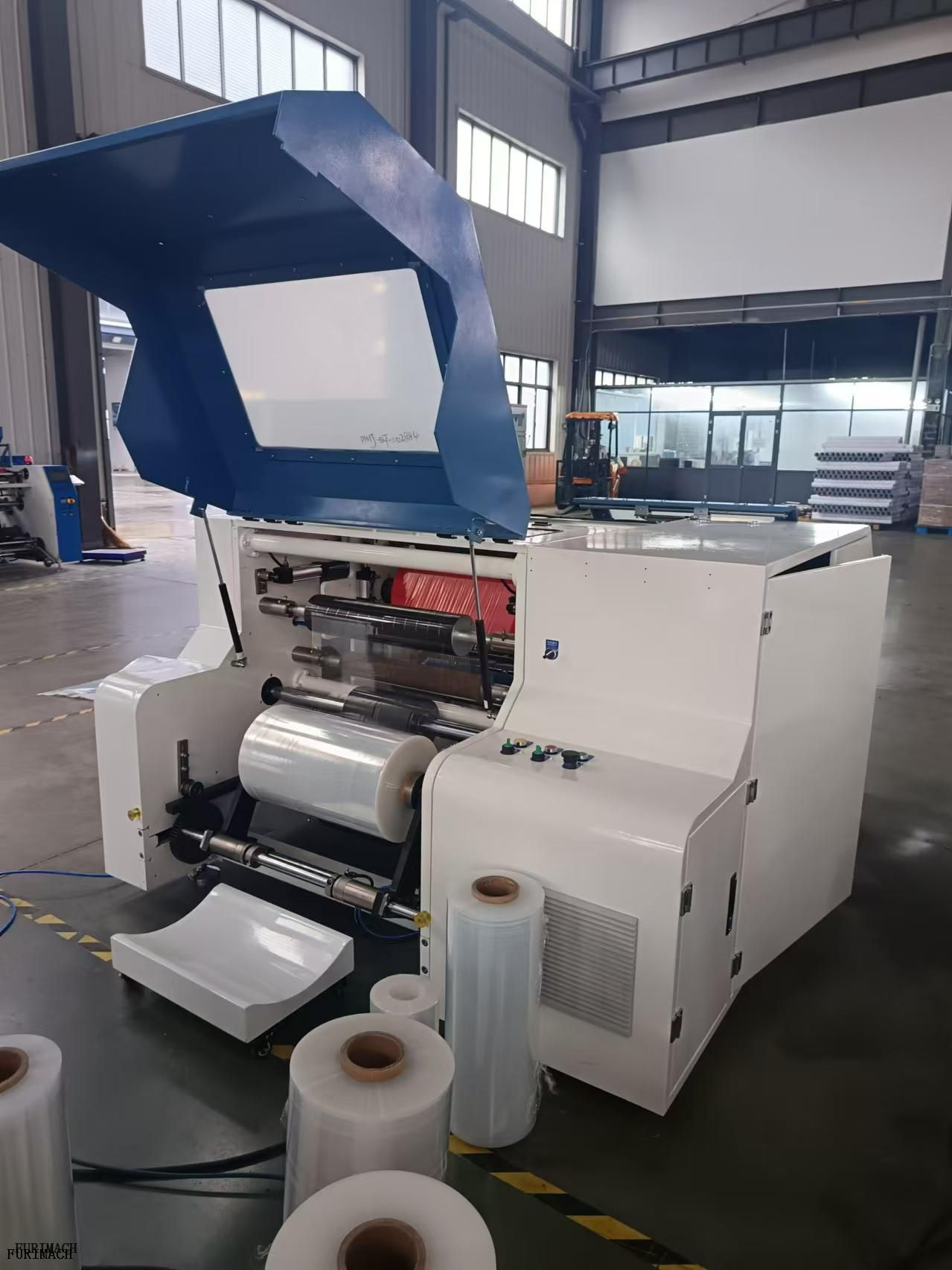

Fully Automatic Stretch Film Rewinding Machine
1000m/min working speed, 2" /3" rewinding diameter, coreless rewinding or core rewinding, both supportive. Fully automatic model for mainpower saving.
This model is popular in the globe, as it supports core type rewinding and coreless type rewinding, 2"/3" rewinding diameter.
| No | Item | Data |
| 1 | Power | 6KW |
| 2 | Machine speed | 0~1000m/min |
| 3 | Rewind shaft | 2"/3" |
| 4 | Rewind core material | Paper/ABS; Corelss |
| 5 | Effective width | 500mm |
| 6 | HMI | 7" touch screen |
| 7 | Auto core loader | Top located |
| 8 | Unwind diameter | 500mm |

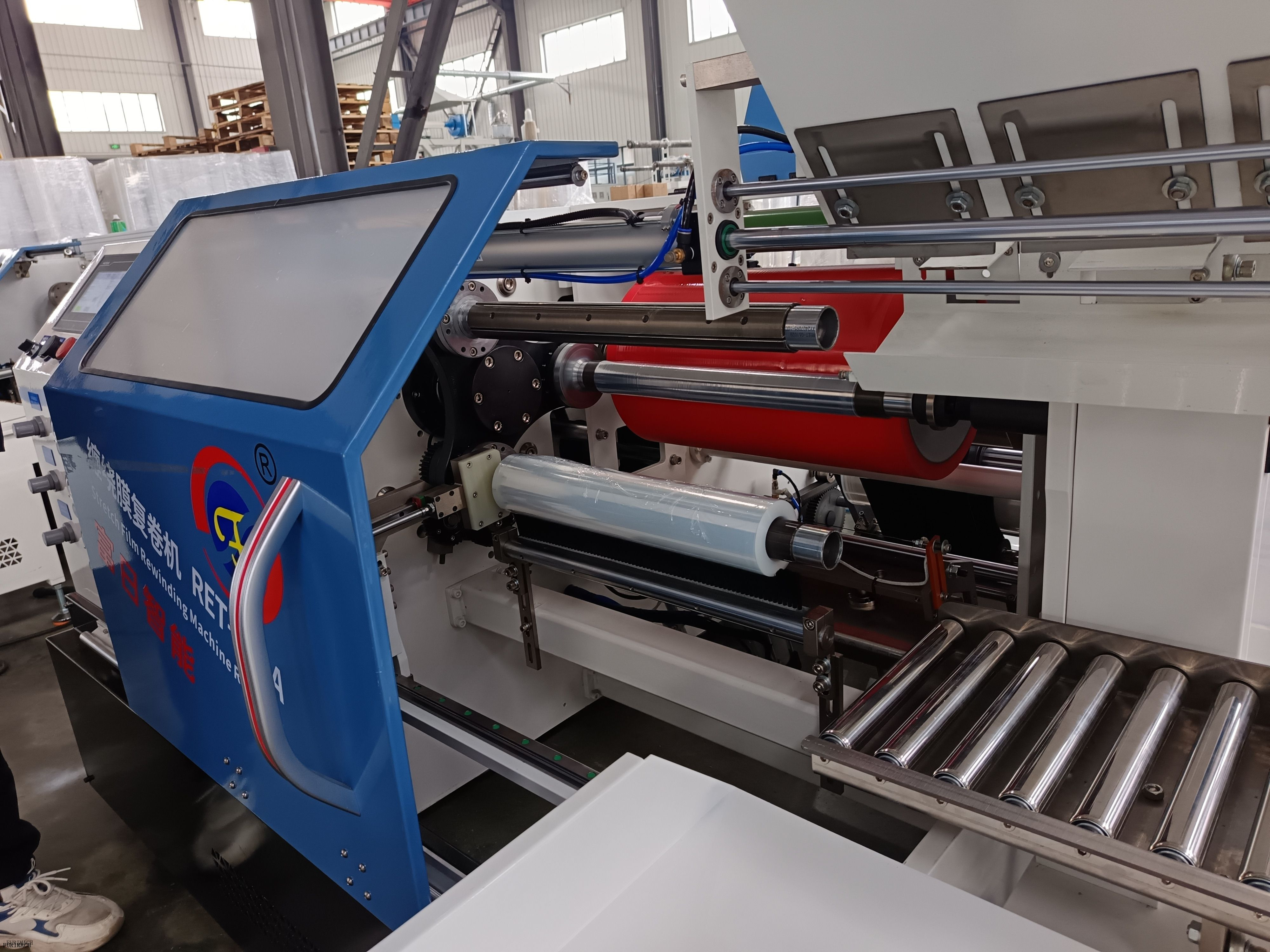

Rewind section
1. rewind shaft: 2"/3"
2. rewind control system
With solenoid valve, automatic inflation. Rewind shaft turret exchange system
300W motor drive with cam divider accurate positioning
3. rewind cut-off system
Automatic up/down device, thermoelectric wire cut, pneumatic blowing pasting, brush smoothing
4. rewind pusher device
Pneumatic sliding platform, auto pusher device
5. Collection device
Guide roller type splice roller, swing type collection platform, pneumatic control
6. Storage device
Slope type storage platform
