XH-1600MS
FURIMACH
84778000
Masking Tape Coating Machine
Application: suitable for natural rubber masking tape coating production.
Features:

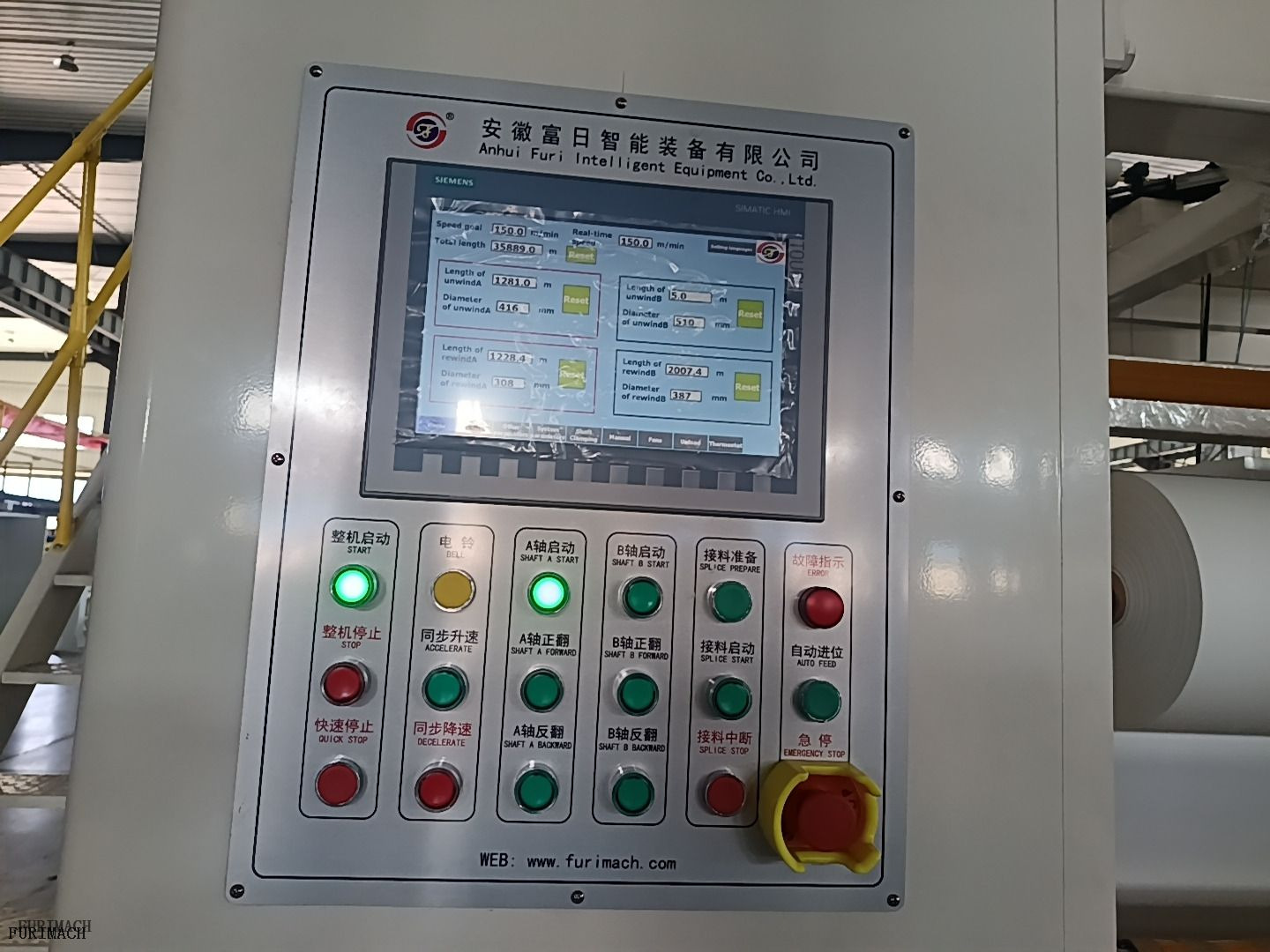

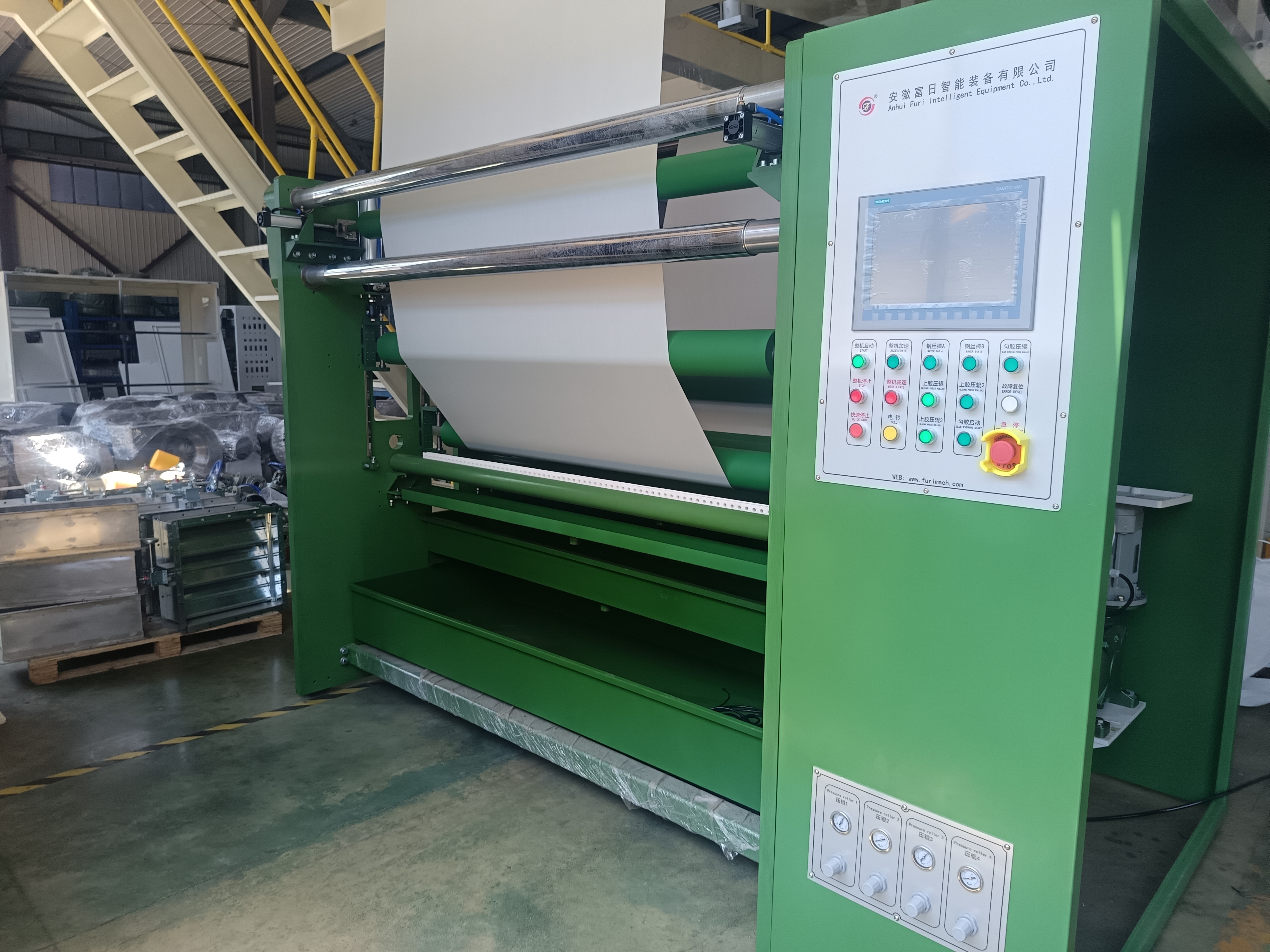

1.Siemens PLC control system with touch panel operation.
2.Double-station unwind/rewind without shutdown. Splice automatically at running speed.

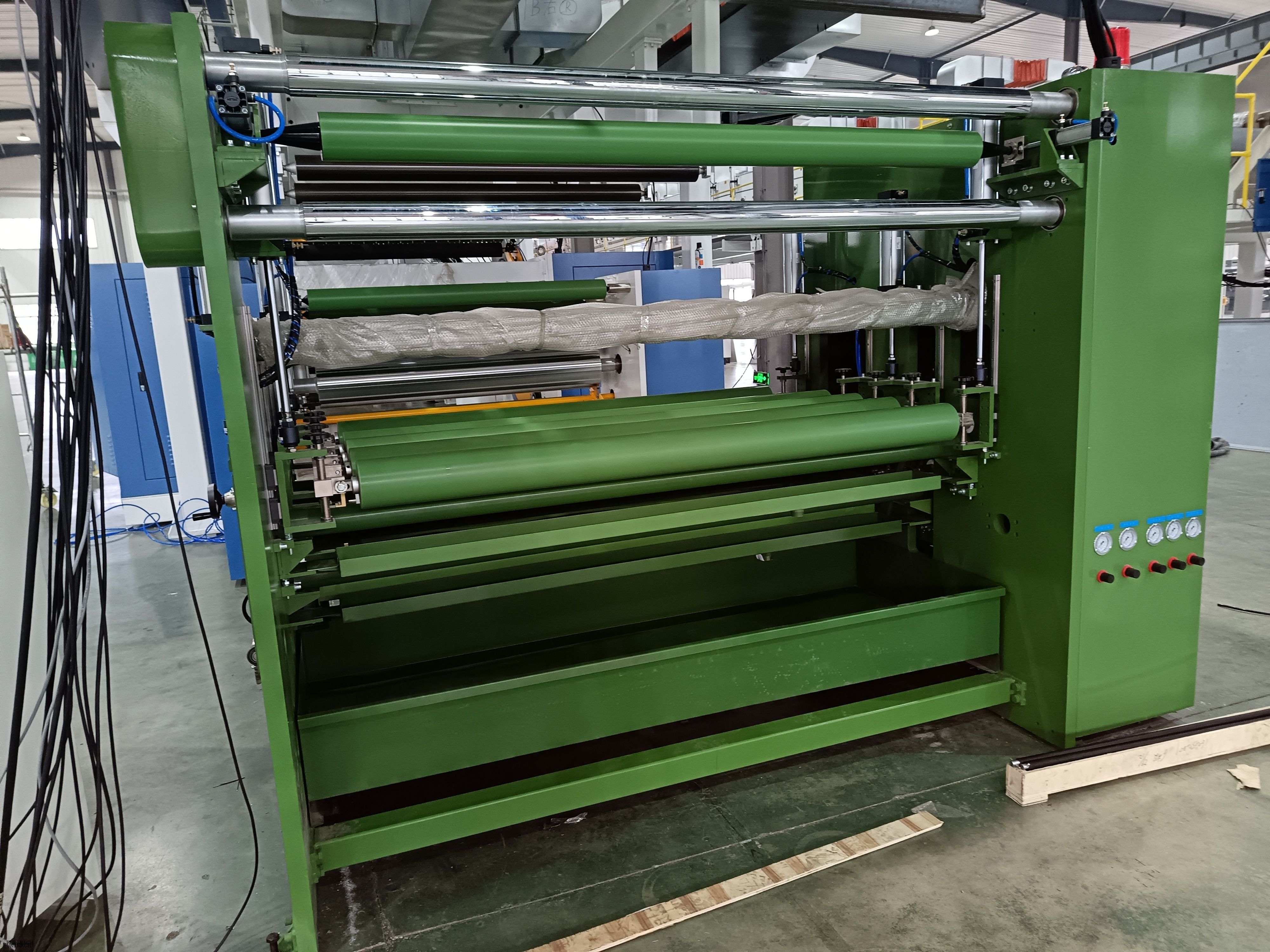

3. Comma coating head /round bar coating head for choice
4. Separate tension control in closed loop, with more stable production tension.

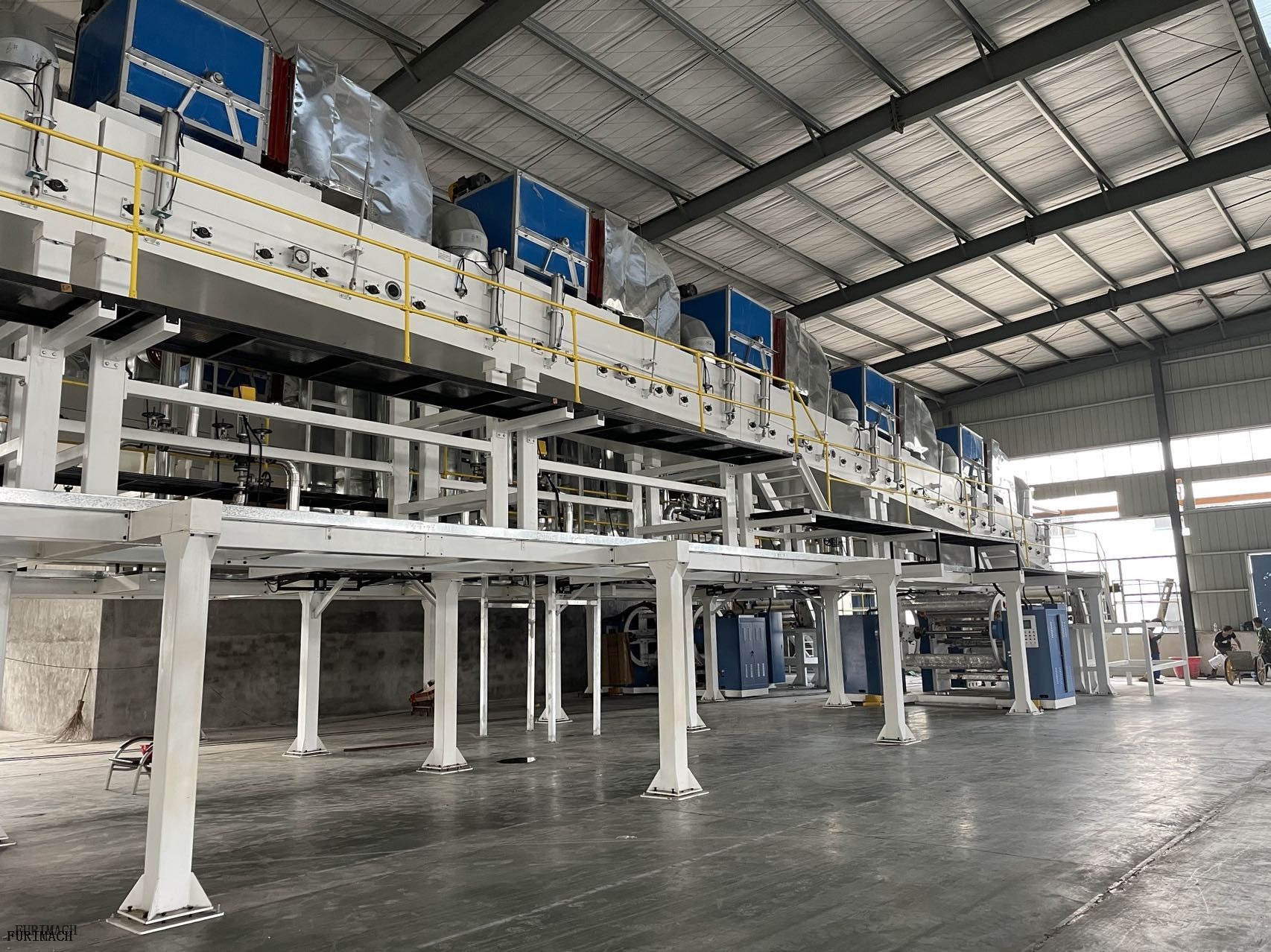

5. Arched oven design (conveyor belt/guide roller). Independent and precise temperature control for partitioned area.
6. Side top opening type of oven, easy for operation and cleaning.
7. Web guide control by servo motor, with smooth rewinding.
8. Asymmetric rewinding for saving more product during auto splice.
9. Strong on-site & remote support.
Technical parameter
Max. substrate width | 1300 mm | 1600 mm |
Machine speed | Max. 150 m/min | |
Unwind diameter | Maxφ1200mm | |
Unwind type | Double-station auto unwinding | |
Coating type | Comma scraper/transfer coating | |
Oven length | 4m/section*12 sections, 48m in total (customization available) | |
Max. temperature | 180℃ | |
Heating type | Natural gas/thermal oil/electricity | |
Rewind diameter | Maxφ800mm | |

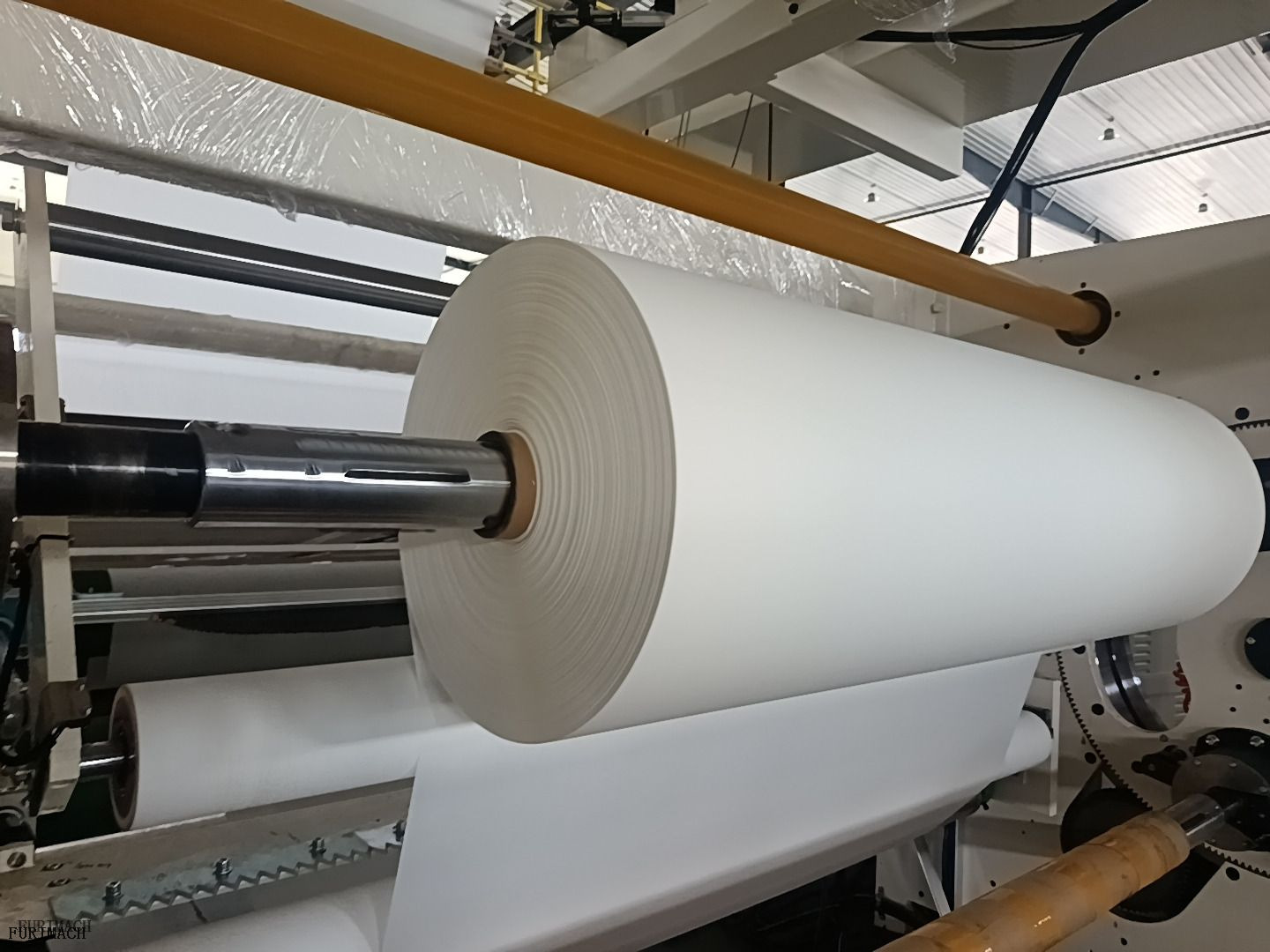

Rewind type | Double-station asymmetric rewinding | |
Tension range | 3~30kg (Whole web load) | |
Air source | 5Kg (Prepared by user) | |
Power source | 380V 50Hz 3P | |
